Introduction
Downtime is any period of time when a machine is not in production. For most manufacturers, unexpected or unplanned downtime is the most significant factor that reduces their manufacturing productivity and profitability. Understanding the main reasons why machines are going down, particularly why they go down unexpectedly, is critical for companies that want to reduce the impact of downtime on their manufacturing operations.
One of the most important and valuable features MachineMetrics provides is the ability to categorize and report on downtime by those categories. The Downtime Report provides a collection of graphical and interactive reporting tools that enable you to view and analyze the machine downtime as it is categorized in your environment. This article explains downtime reporting in MachineMetrics, the information layout of the Downtime Report, and how to use the functions and capabilities of the Downtime Report tools.
Topics covered in this article
This article contains the following topics:
- Downtime Reporting in MachineMetrics
- Accessing the Downtime Report
- Downtime Report Information Layout and Functions
- Selecting the Downtime Report Scope
Downtime Reporting in MachineMetrics
The Downtime Report in MachineMetrics provides interactive Pareto bar charts and downtime event tables that enable you to quickly identify and understand which downtime categories or reasons are having the most impact on your environment as well as on individual machines.
Downtime Categories and Uncategorized Downtime
Downtime categories specific to your environment are created in System Settings when the MachineMetrics environment is set up. Machine Operators are then prompted to select one of the downtime categories when the duration of the downtime event exceeds the threshold configured that classifies downtime events as "Long" downtime. Executive and Manager users can also use the Timelines Dashboard to categorize downtime that was not categorized by operators at the time it occurred.
Uncategorized Downtime
All Long downtime must be categorized or the Downtime Report may give an inaccurate or misleading impression of which reasons are the most significant source of machine downtime in your environment. By default, the Downtime Report does not show downtime that has not been categorized. You can include uncategorized downtime (both Long and Micro) in the Downtime Report views by changing the report filter as described in Viewing Downtime by Shift.
Downtime Charts
The Downtime Report provides Pareto charts and other types of bar charts that illustrate downtime by category. Each downtime bar chart offers interactivity and access to more information as described in Downtime Report Information Layout and Functions.
Downtime Events Tables
Interactive Downtime Events tables are provided for all machines and for individual machines. These tables provide the available data on all downtime events that have occurred during the selected time period. Downtime Events tables offer interactivity and access to additional information as described in Downtime Report Information Layout and Functions.
Accessing the Downtime Report
From the Reports Landing Page
To access the Downtime Report from the Reports Landing page, do the following:
- Login to MachineMetrics. The default view of the Machines List will open.
- Click on Reports in the main navigation
- Select the Downtime report tile as shown
To access the Downtime Report, do the following:
- Login to MachineMetrics. Once logged in, the Dashboards module will open to the default view of the Current Shift Dashboard.
- Hover over Reports in the main navigation, and select Downtime in the drop-down menu as pictured below.
- The Downtime Report will open as shown below.
Downtime Report Information Layout and Functions
The Downtime Report presents downtime data over the selected time period in the following formats:

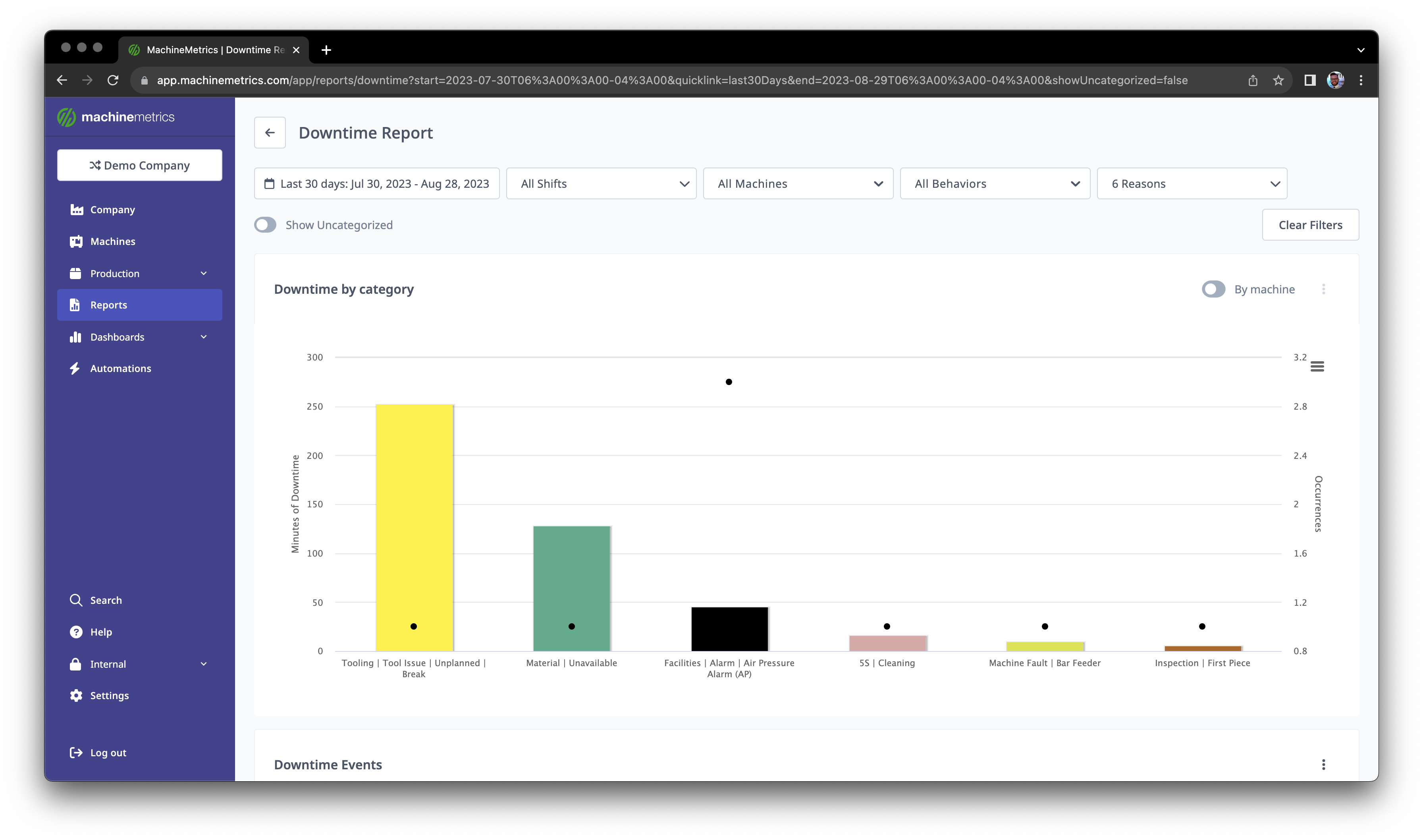

- Downtime Pareto: Pareto bar chart that illustrates downtime for all machines in the environment by category and minutes of downtime.
- Downtime Events: Table that lists all categorized downtime events that have occurred over the selected time period.
- Downtime By Machine: Composite bar chart that illustrates downtime for each individual machine, with different colors indicating the different downtime categories.
Each of these components of the Downtime Report are interactive tools that provide access to additional information as described in the following sections.
Using Downtime Pareto Charts
The Downtime Pareto charts used in the Downtime Report are structured as follows:
- X-Axis (Downtime Categories): The X-Axis has a label for each downtime category used in your environment, with a particular color designated for the bar assigned to each downtime category.
- Left Y-Axis (Minutes of Downtime): The length of the bar associated with each category compared to the left y-axis indicates the minutes of downtime that have been assigned that category during the selected time period. The bars in the chart are presented in descending order so that it is easy to identify which categories are the most significant sources of machine downtime.
- Right Y-Axis (Occurrences): The right y-axis for Occurrences corresponds to data points above each category. The position of these data points compared to the right y-axis indicate how many times that type of downtime has occurred.
Viewing Summary Data for Downtime Categories
To view the summary data for each downtime category, hover over the category bar or the number of occurrences data point. This will display the following:
- Category name
- Total duration for the downtime in that category
- Total number of occurrences of downtime events in that category
Viewing Category-Specific Downtime By Machine
In the machine group report view for All Machines or for individual groups, if you click on any category bar (or category name) in the Downtime Pareto chart, a page will open that contains the following:
- Category-Specific Downtime Pareto: Bar chart that shows the amount of downtime that occurred in the category on each machine (see example below).
- Category-specific Downtime Events: Table that lists all available data for the downtime events that occurred in that category (see example in Using Downtime Events Tables).
- Downtime By Machine: Composite bar chart that illustrates downtime for each individual machine, with different colors indicating the different downtime categories (see example in Using Downtime By Machine Charts).
No Category Bar to Click: Categories that have only a short duration of downtime may not have a visible category bar. If a category does not seem to have any downtime events associated (no bar is visible to click), click on the category name to open the page for that category.
The following figure shows an example of the Unplanned Maintenance Downtime Pareto that displays when the Unplanned Maintenance bar (or category name) in the preceding section example is clicked.
Using Downtime Events Tables
The Downtime Report provides interactive Downtime Events tables for all machines, individual machines, and downtime categories. These tables provide the available data on all downtime events that have occurred during the selected time period, including:
- Start: The start date and time of the downtime event.
- Duration: The length of time the downtime event lasted.
- Machine: The name of the machine that experienced the downtime event.
- Reason: The downtime category assigned to the downtime event.
- Message: Any message added by the user that categorized the event.
- Planned: Whether the downtime event was categorized as planned, unplanned, or exceeded the limit that was set for the planned downtime.
Downtime Events Table for All Machines or Machine Groups

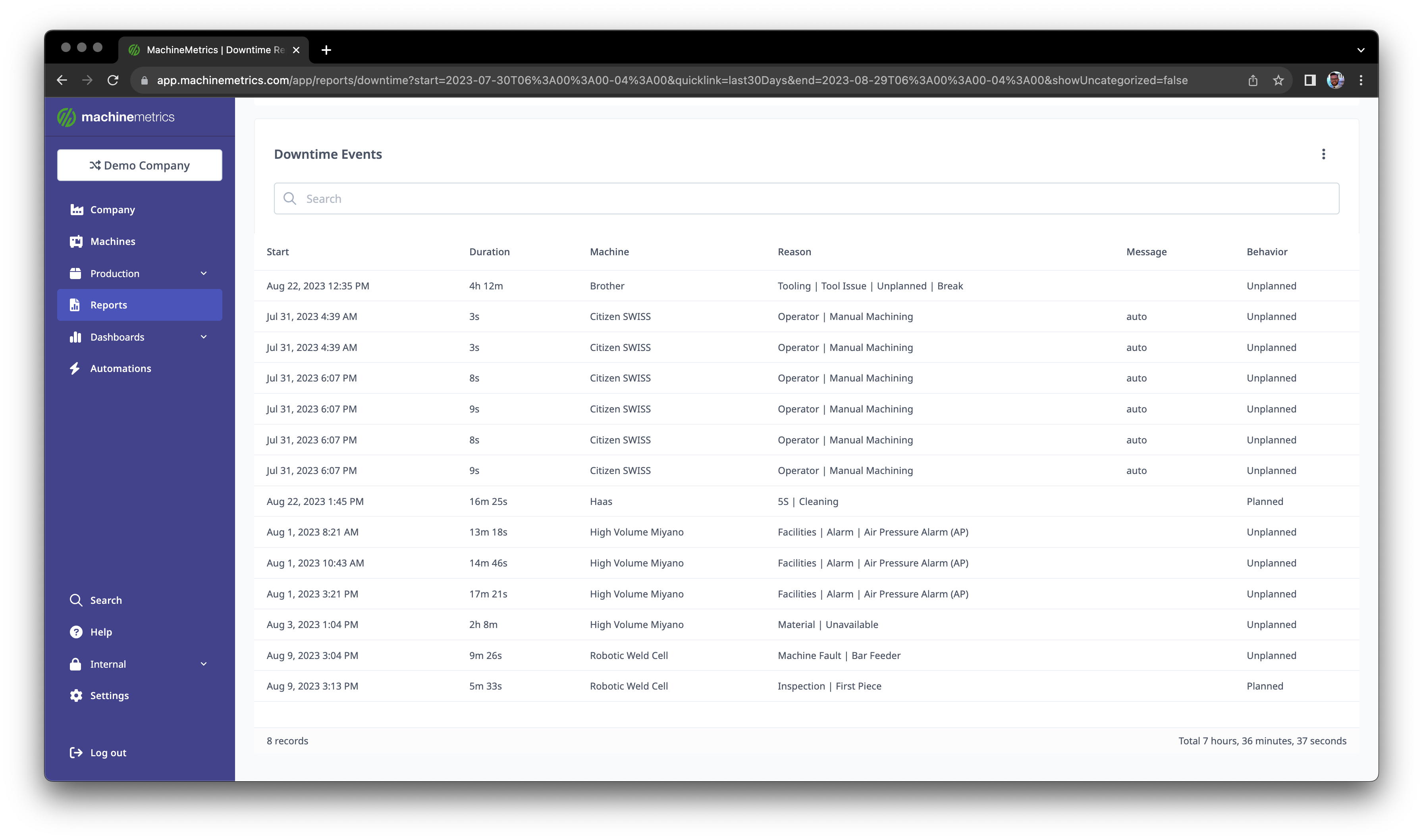

The following figure shows an example of the Downtime Events table in the Downtime Report view showing all machines or selected machine groups.
The Downtime Events table in the downtime report for all machines offers the following functions:
- Sort by Column: Click any column heading to sort the table in ascending or descending order based on the data in that column. Click once for ascending, twice for descending, and three times to remove the sort.
- Text Search: The Machine, Reason and Message column headings contain search fields that automatically filter the table data based on text entered in the search field.
- View Machine Timeline Dashboard: Clicking on any downtime event entry in the table will open the Timeline Dashboard for the machine that experienced the downtime event.
Downtime Events Table for Individual Machines
The following figure shows an example of the Downtime Events table for a single machine (CNC 105).
The Downtime Events table in the downtime report for an individual machine offers the following functions:
- Sort by Column: Click any column heading to sort the table in ascending or descending order based on the data in that column. Click once for ascending, twice for descending, and three times to remove the sort. The above example shows the table sorted ascending by Message.
- View Machine Timeline Dashboard: Clicking on any downtime event entry in the table will open the Timeline Dashboard for the machine.
Downtime Events Table for Downtime Categories

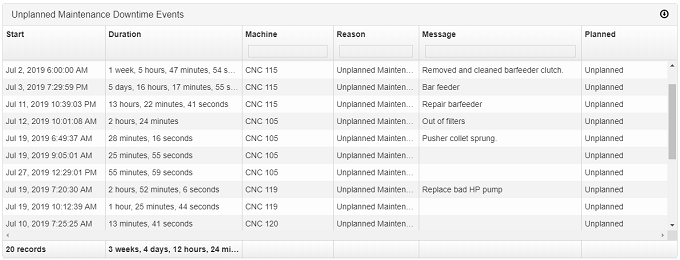

The following figure shows an example of the Downtime Events table for a downtime category (Unplanned Maintenance).
The Downtime Events table in the category-specific downtime report offers the following functions:
- Sort by Column: Click any column heading to sort the table in ascending or descending order based on the data in that column. Click once for ascending, twice for descending, and three times to remove the sort.
- Text Search: The Machine, Reason and Message column headings contain search fields that automatically filter the table data based on text entered in the search field.
- View Machine Timeline Dashboard: Clicking on any downtime event entry in the table will open the Timeline Dashboard for the machine that experienced the downtime event.
Using Downtime By Machine Charts
The Downtime by Machine chart is a composite bar chart that shows the downtime for each machine in the environment using color-segmented bars. Each different color segment represents each different category of downtime (the same colors used in the Downtime Pareto for All Machines) in proportion to the amount of downtime that occurred for the machine in that category.
The Downtime by Machine composite chart offers the following functions:
- View Downtime Category Summary: Hovering over a color segment on a bar will provide the summary data for that category on the machine (see figure above).
- View Machine Downtime Report: Clicking on the composite bar associated with a machine will open the downtime report page for that individual machine, As shown in the figure below, the machine downtime report provides a Downtime Pareto chart and Downtime Reasons (Events) table for the individual machine.
Selecting the Downtime Report Scope
Each Downtime Report view provides the capability to set the scope of the report for the following report parameters:
- Select Machine Group: View data for All Machines or only for selected groups.
- Filter By Shift: View downtime data only for selected shifts.
- Report Date Range: Set the date range covered by the report data.
Selecting Machine Group
By default, the Downtime Report shows downtime data for all machines. To show the downtime data for only selected machine groups, click the Select Machine Group pull-down menu, select the desired machine groups, and click the Apply button to change the report view.
Viewing Downtime by Shift
By default, the Downtime Report views show downtime for all work shifts. Click the Filter By Shift pull-down menu, select the desired shifts, and click the Apply button to change the report view to show the utilization data for only the selected shifts. You can also whether or not to view downtime that is Planned, Unplanned, Uncategorized, or Only Scheduled Periods.
Changing the Report Date Range
Click either of the dates in the top right of the report view to select the date range you want the report to cover, and click the Apply button change the report.
