Connect to DMG Mori with a Celos and a Siemens Back-end

DMG Mori with a Celos and a Siemens Back-end

These machines will require you purchase the IOT Connectivity as it doesn’t have MTConnect installed by default. To do this, you’ll need to contact DMG Mori. To enable the setting and view/set the IP Address follow these steps:

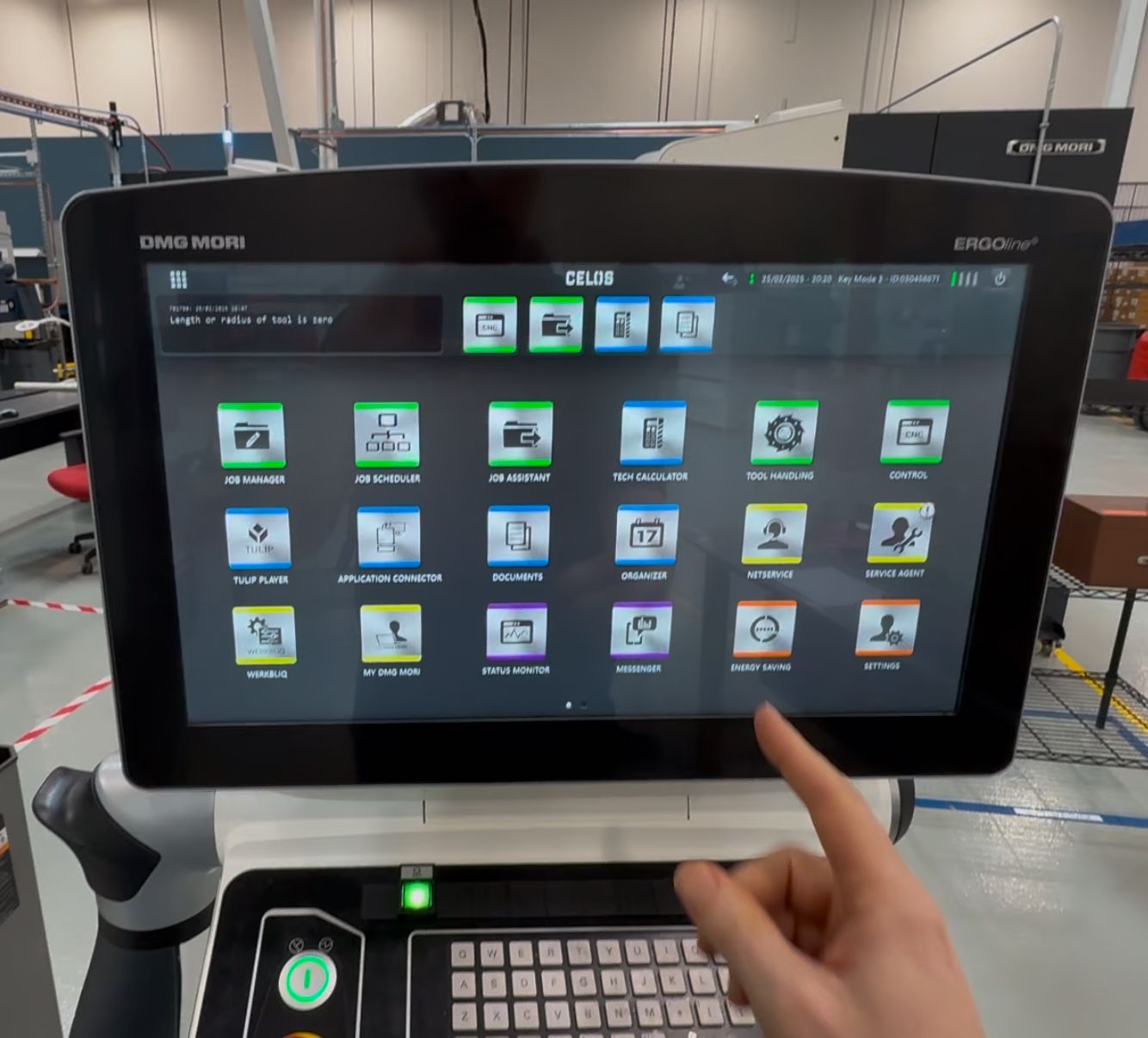

Click the upper left icon of boxes to get to the applications

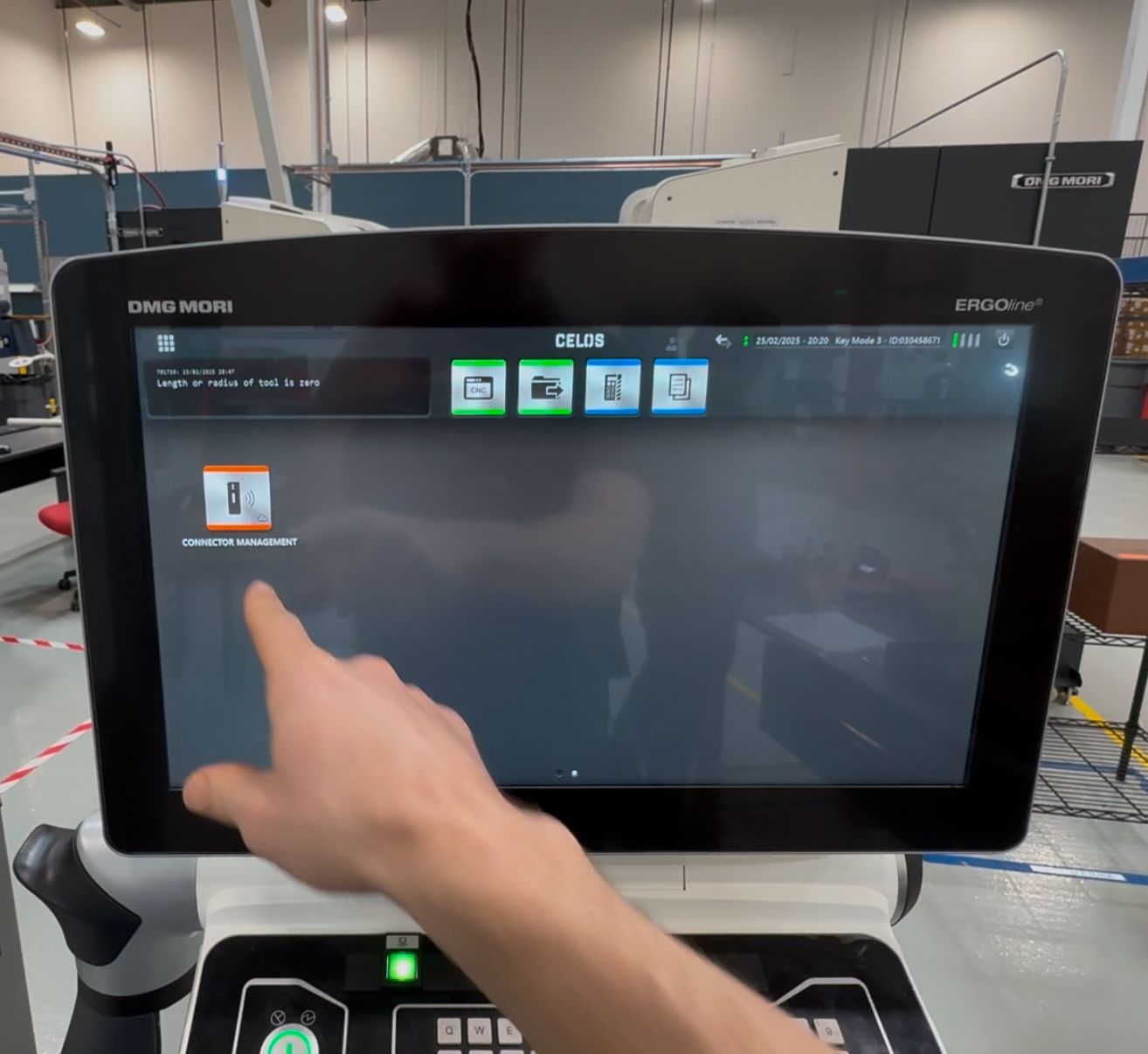

Look for Connector Management, you might have to slide the screen if there are more than 18 apps listed

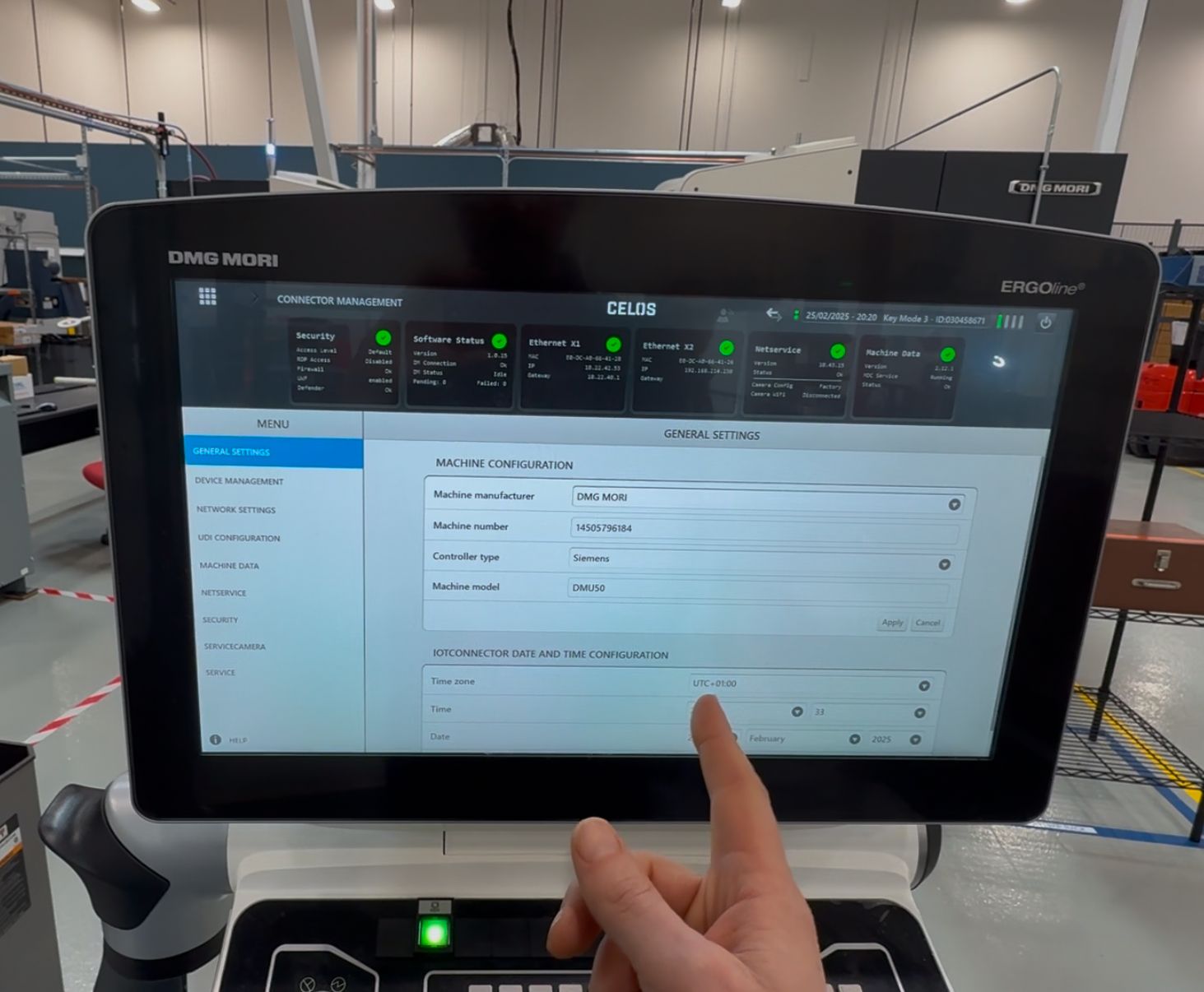

Select Connector Management

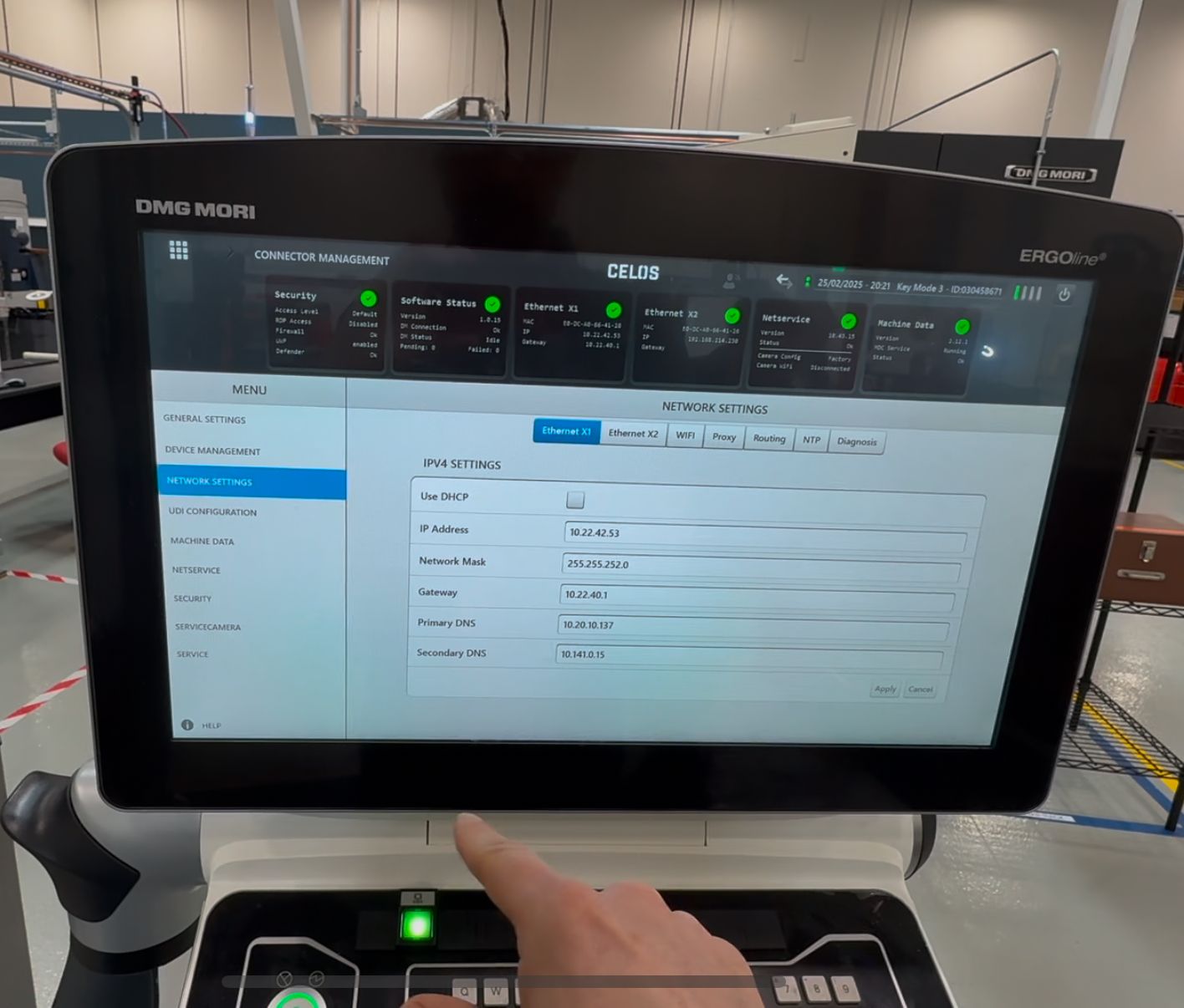

Select Network Settings

This page lets you view or change the IP Address

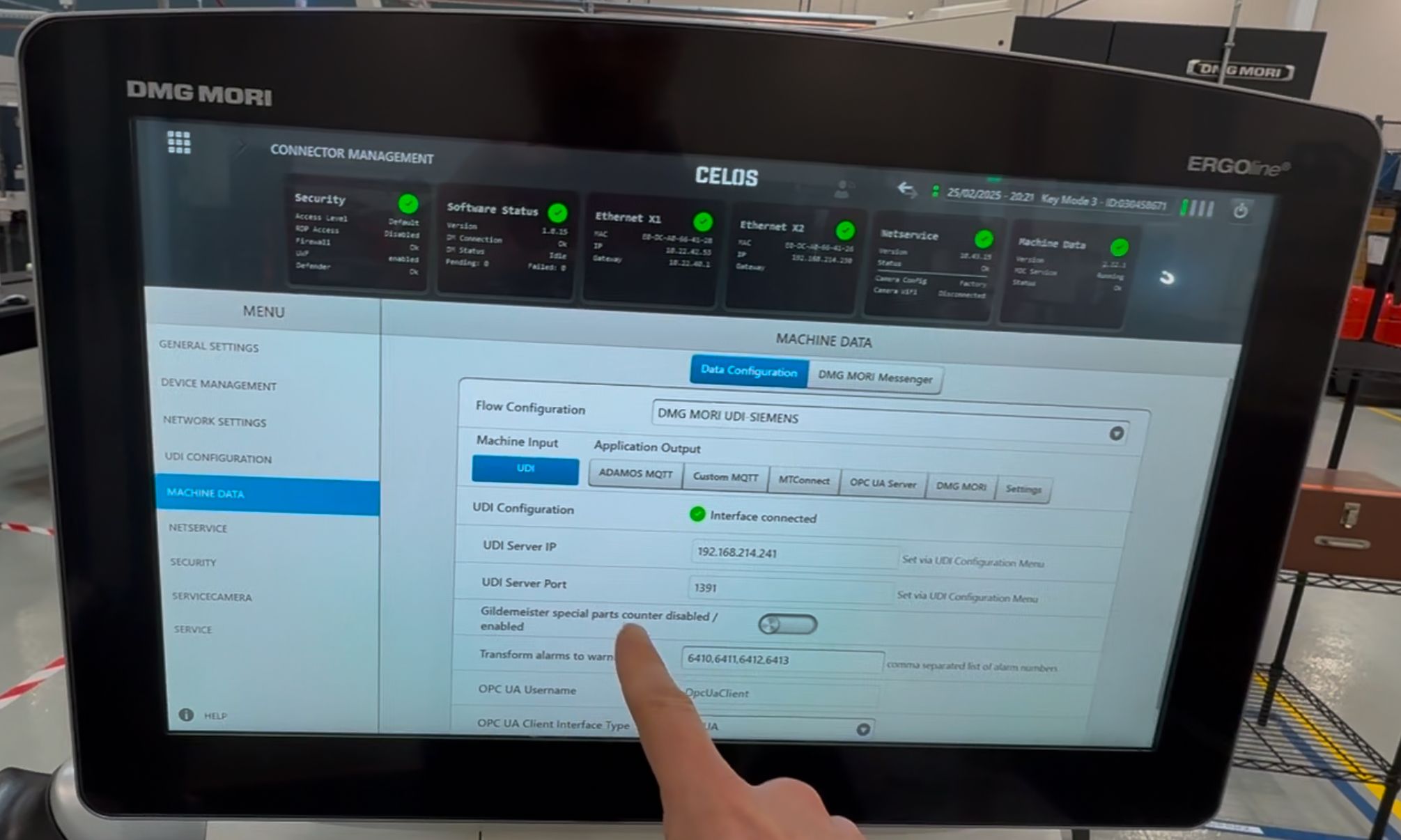

Select Machine Data to view the connectors available

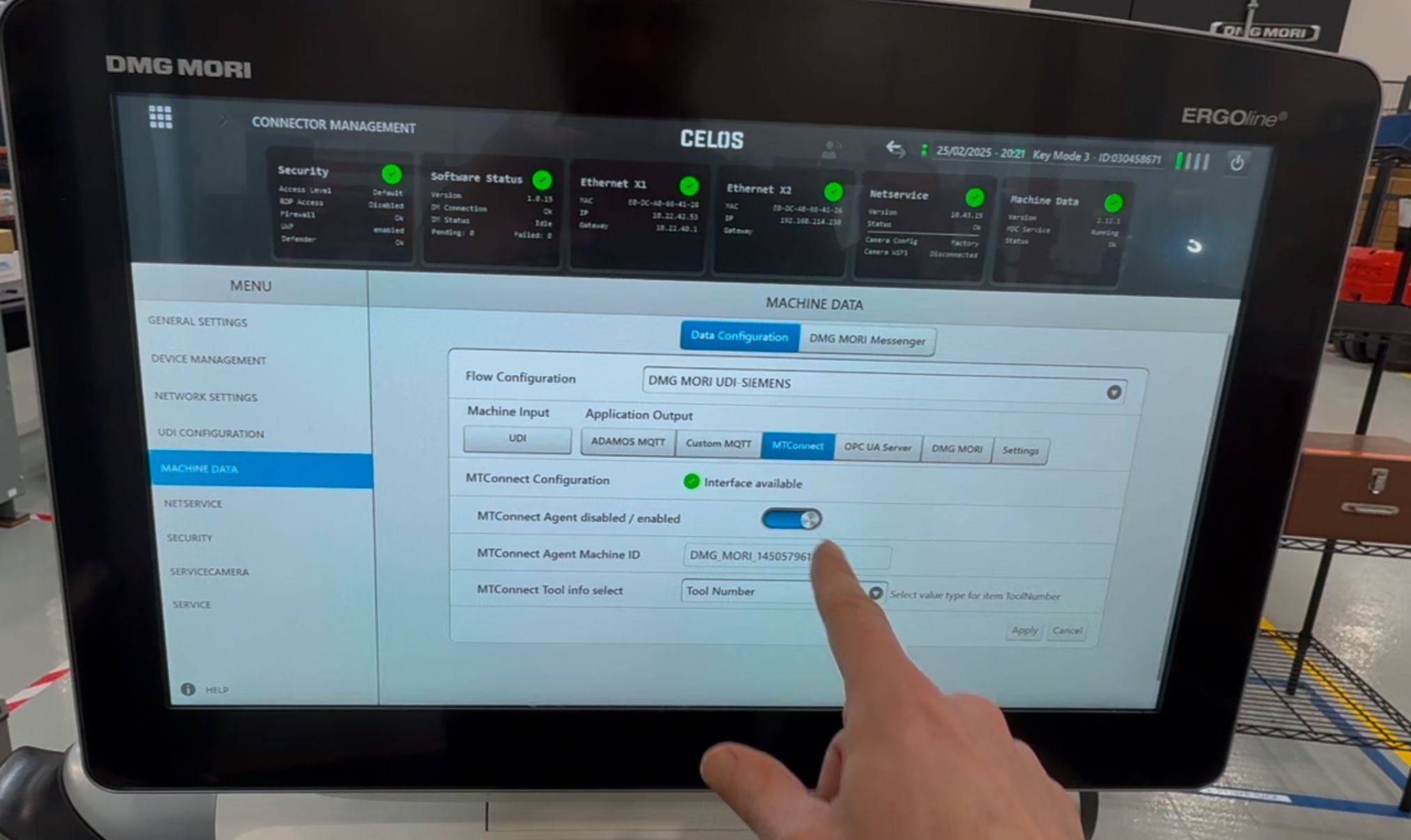

Now the IP address will be communicating over MTConnect for Siemens backed Celos controls
