Connect to DMG Mori with Celos and a Fanuc Back-end

DMG Mori with Celos and a Fanuc Back-end

These machines will likely have MTConnect already installed. Even if they have connector management, the best way to connect to MachineMetrics is to use MTConnect. To access/change the IP address, follow these steps:

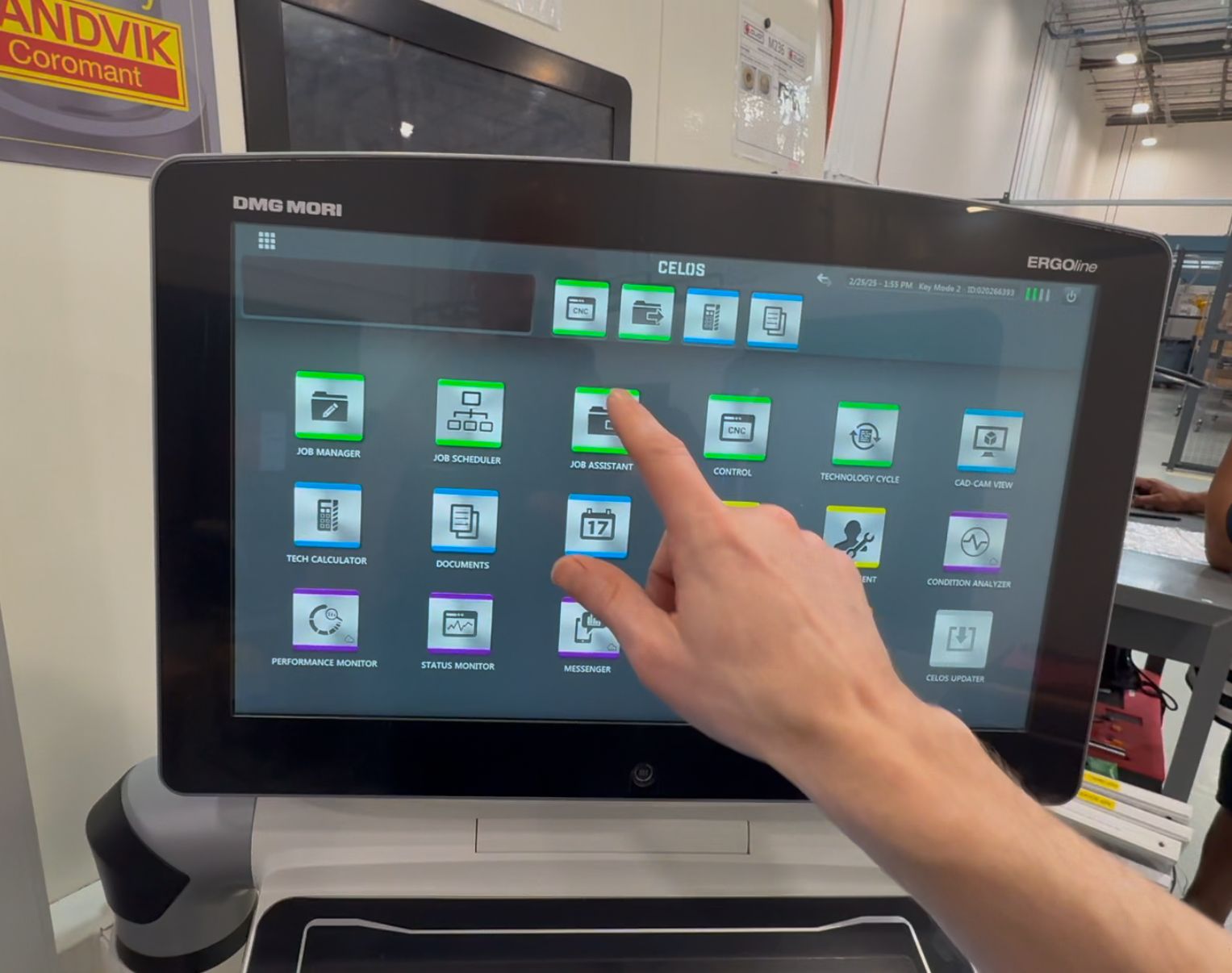

First, tap CNC from the top bar

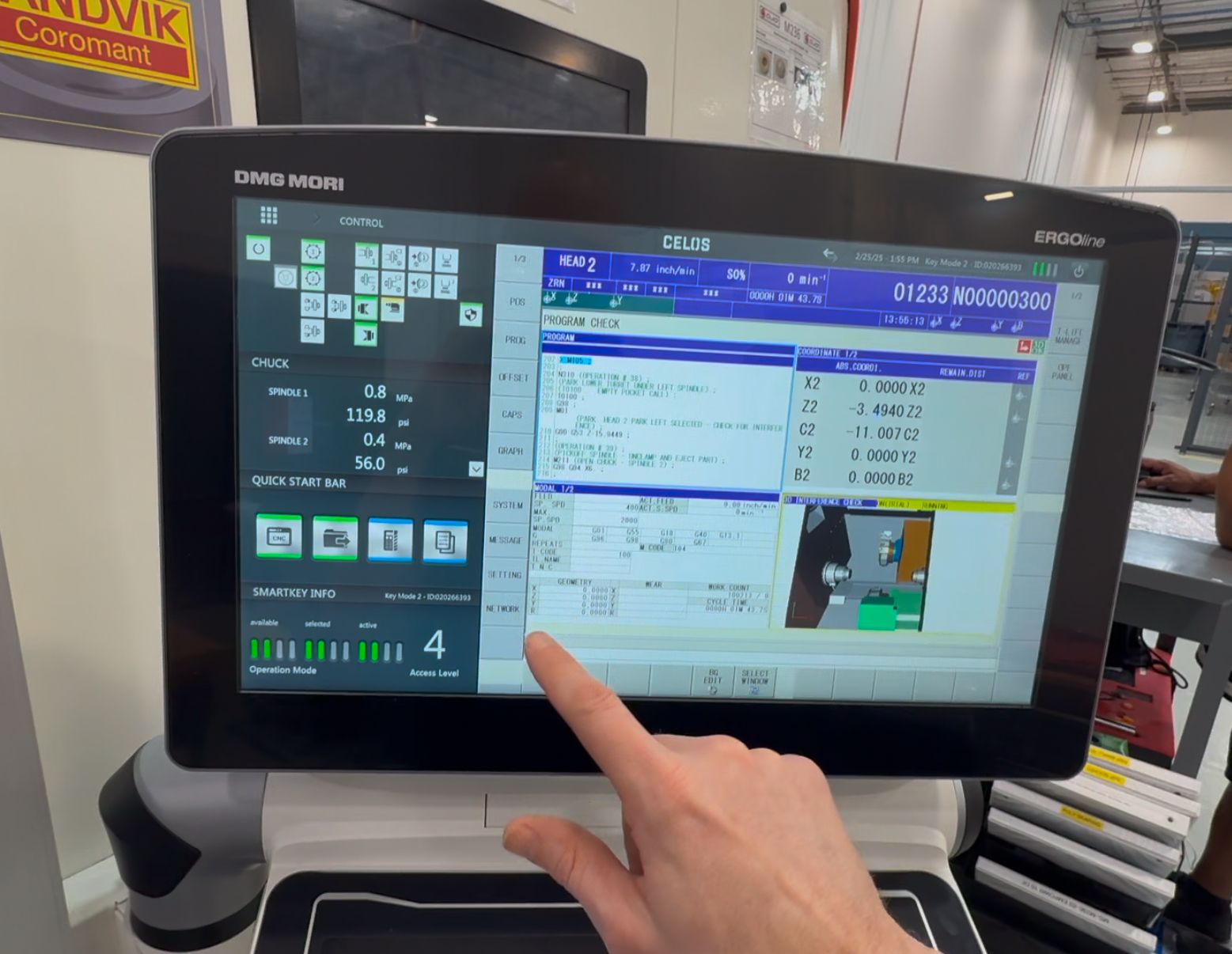

Next, tap System

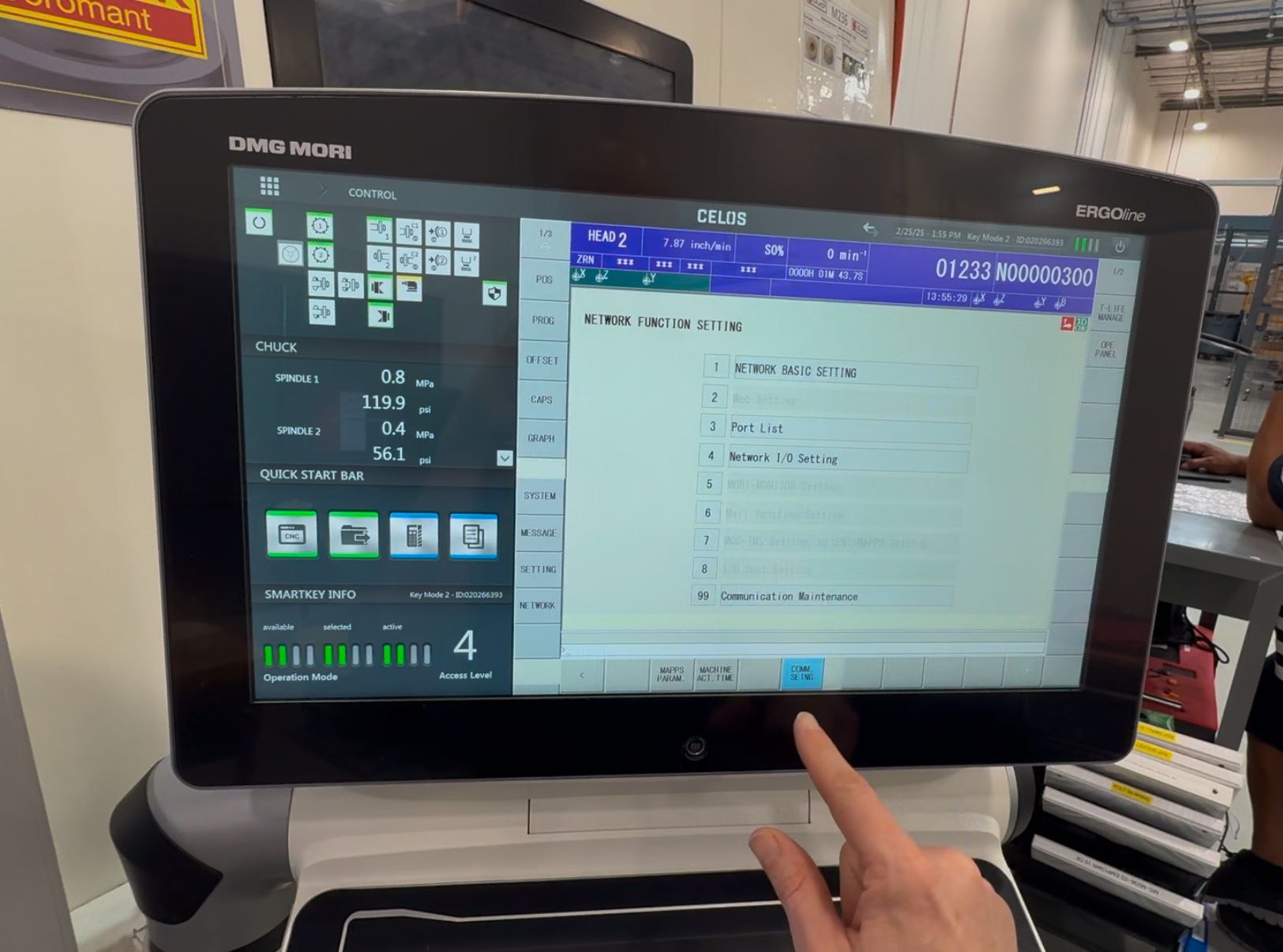

Next tap the left arrow and select “COM Setting”

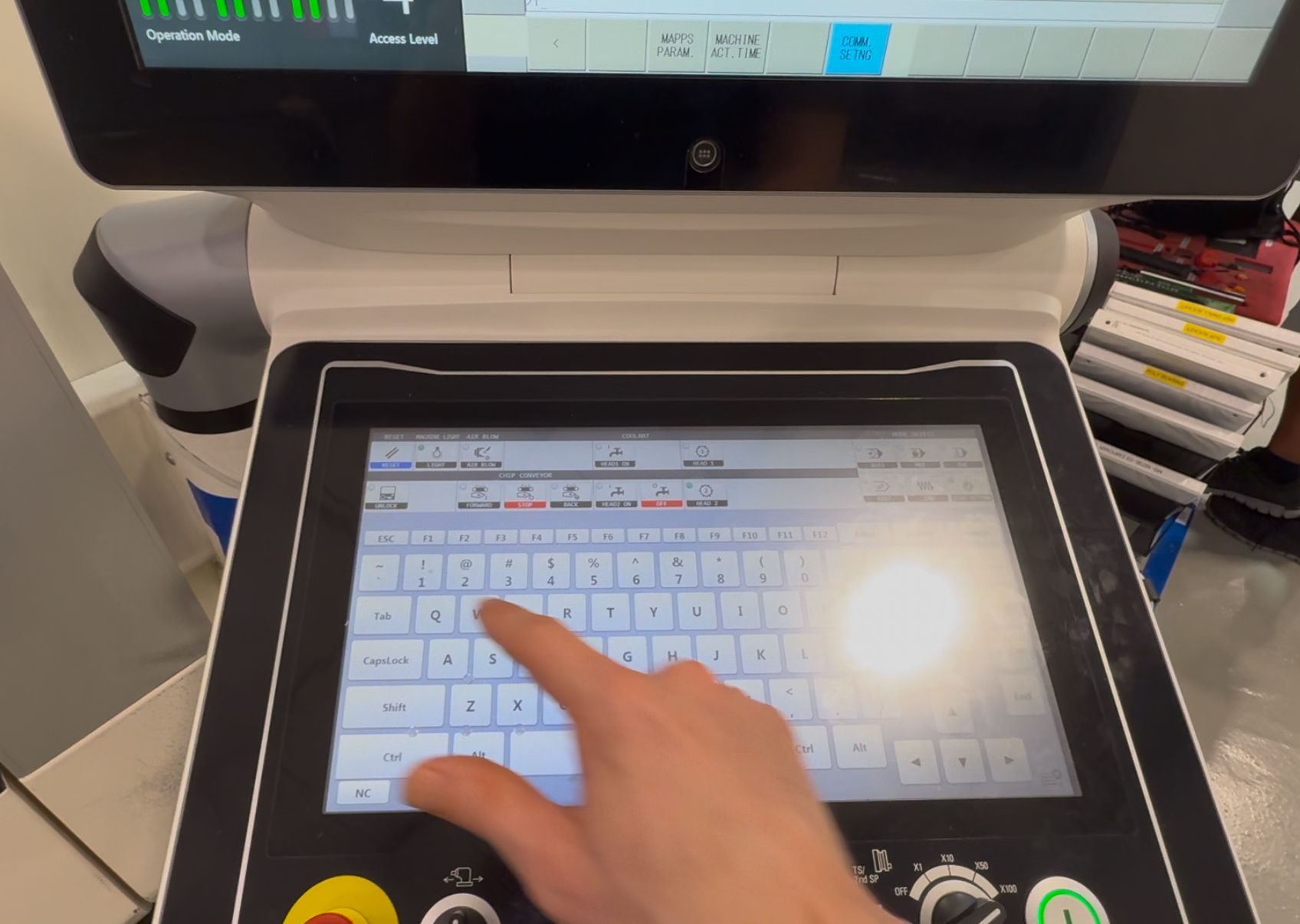

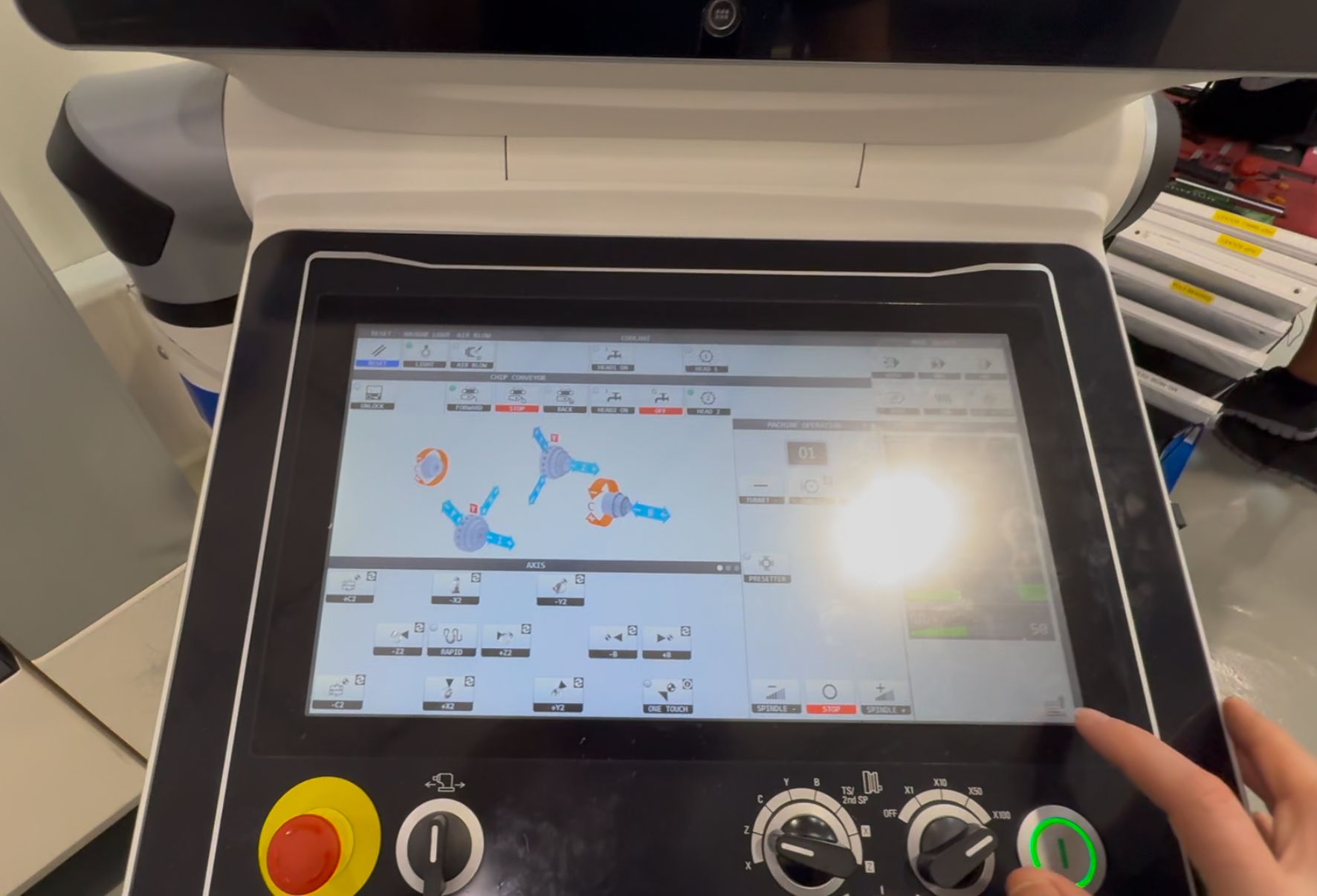

Open up the keyboard in the lower display by clicking the keyboard icon in the lower right

Press 1 and then enter to bring up the network settings

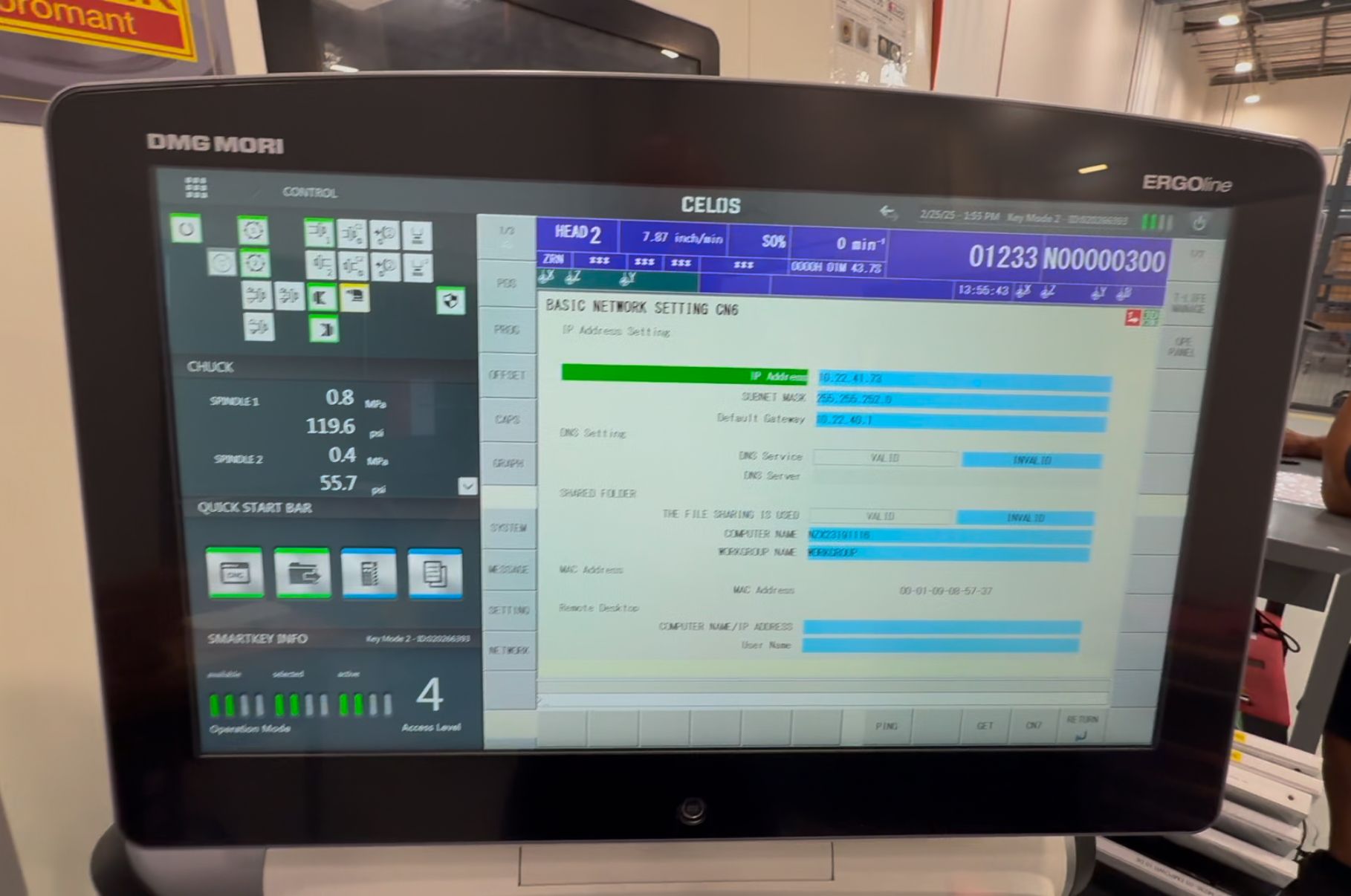

Now you can view or change the IP Address
