Connect to DMG Mori with Celos and a Mitsubishi Back-end

DMG Mori with Celos and a Mitsubishi Back-end

These machines will likely have MTConnect already installed. Even if they have connector management, the best way to connect to MachineMetrics is to use MTConnect. To access/change the IP address, follow these steps:

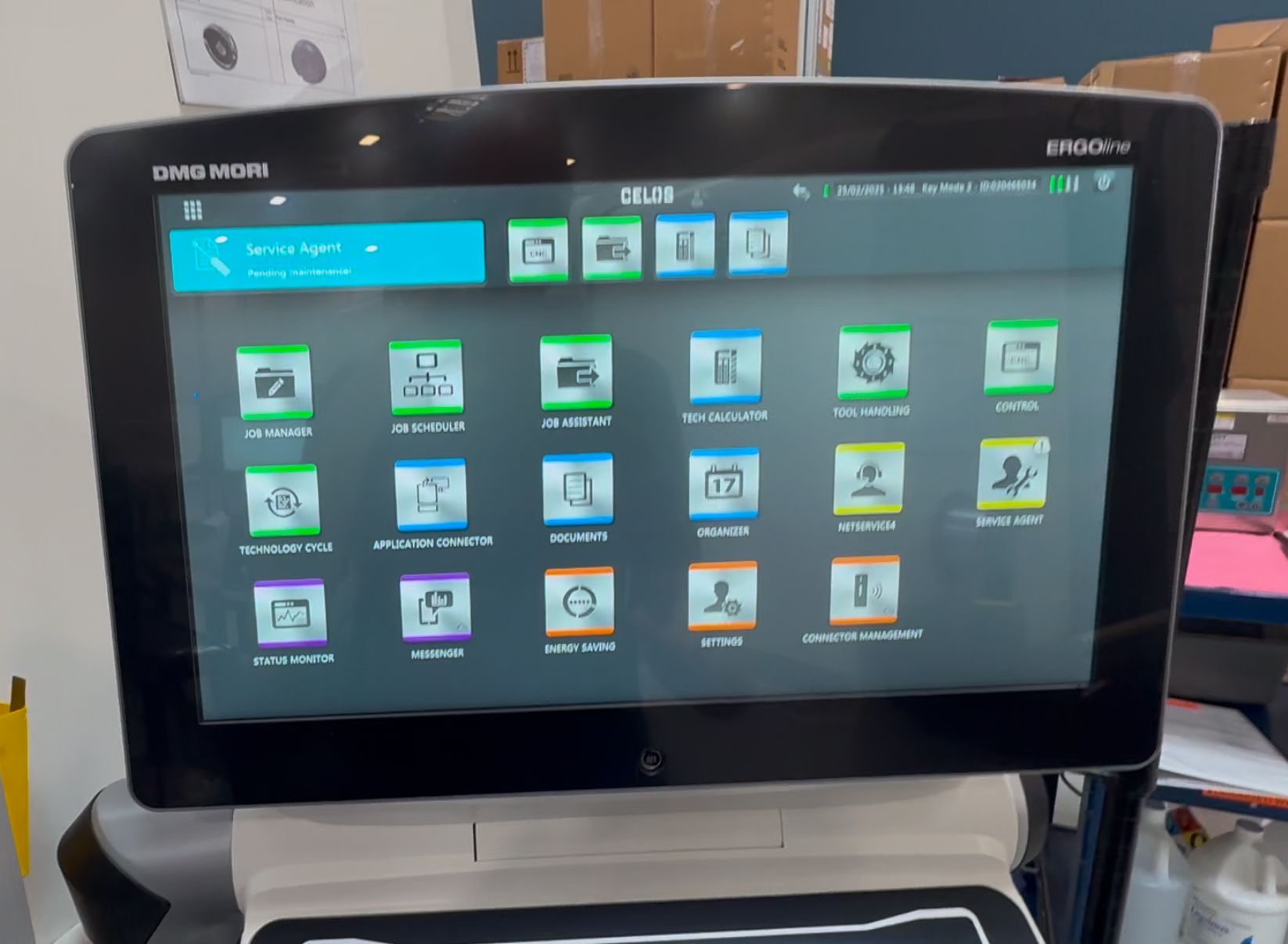

Select “CNC” from the top menu bar

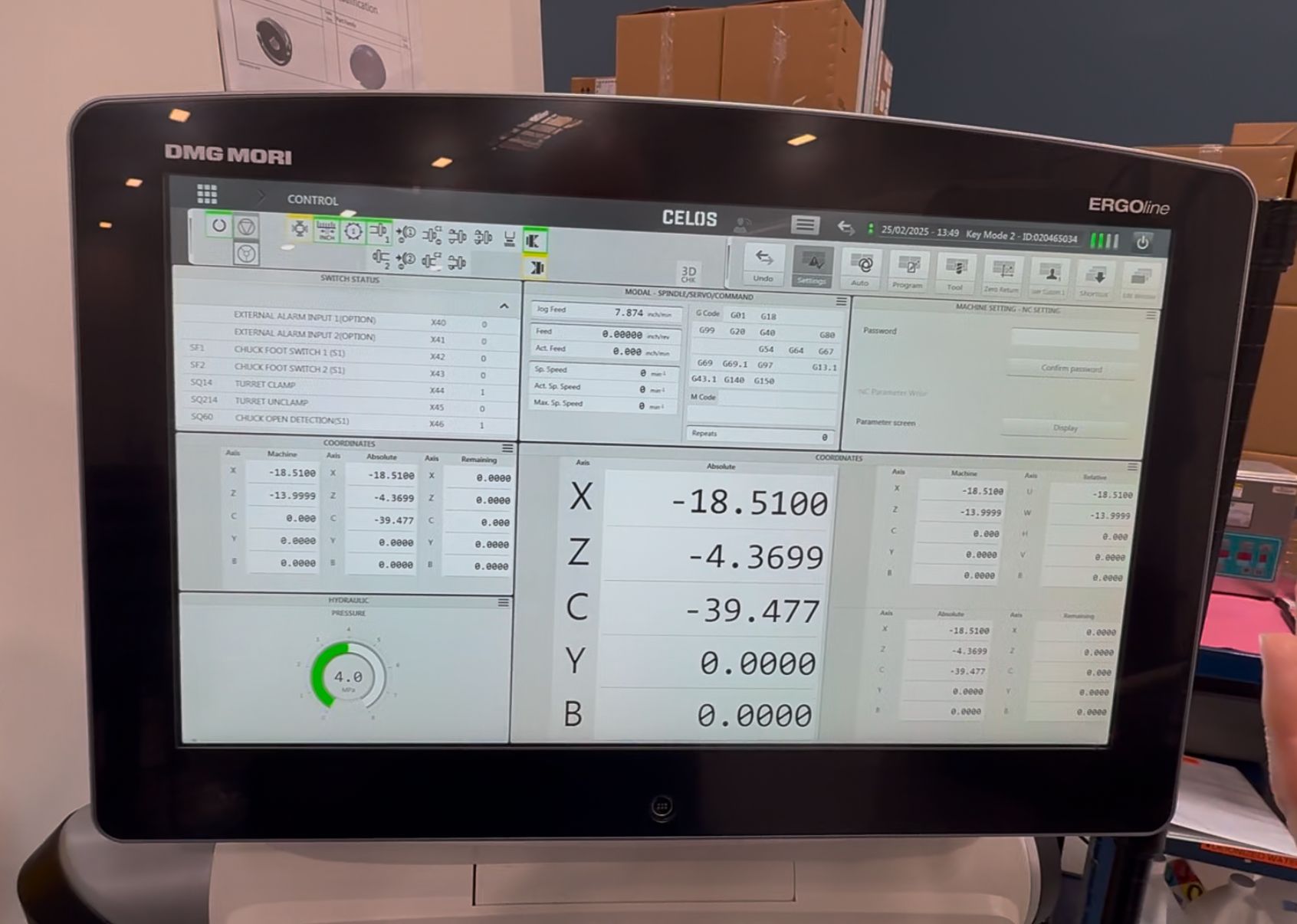

This brings up the main CNC screen. On this control, the screen is completely configurable with the “Edit Window” button. Tap that.

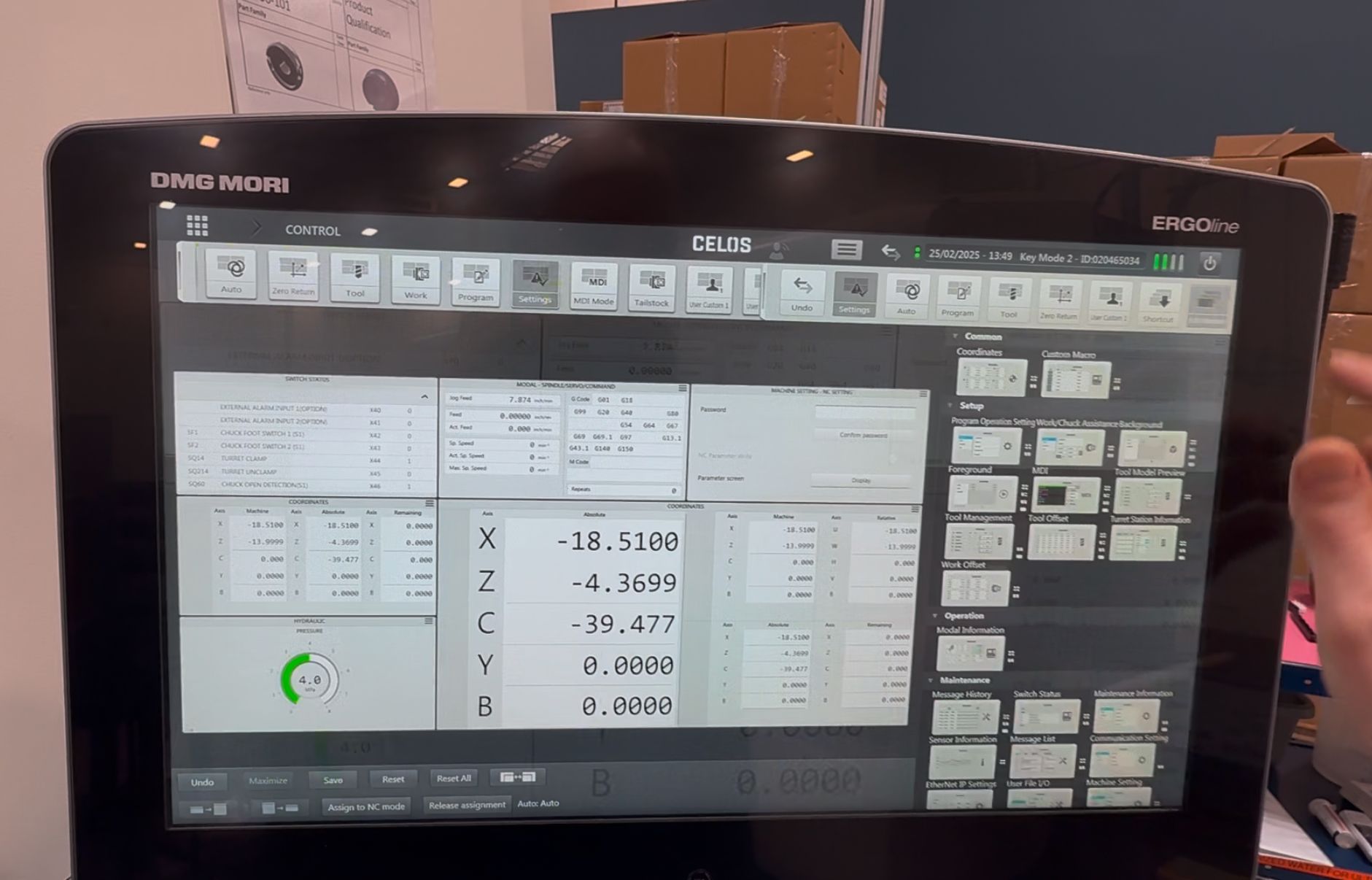

Now we have all of the screens we can show in the main display.

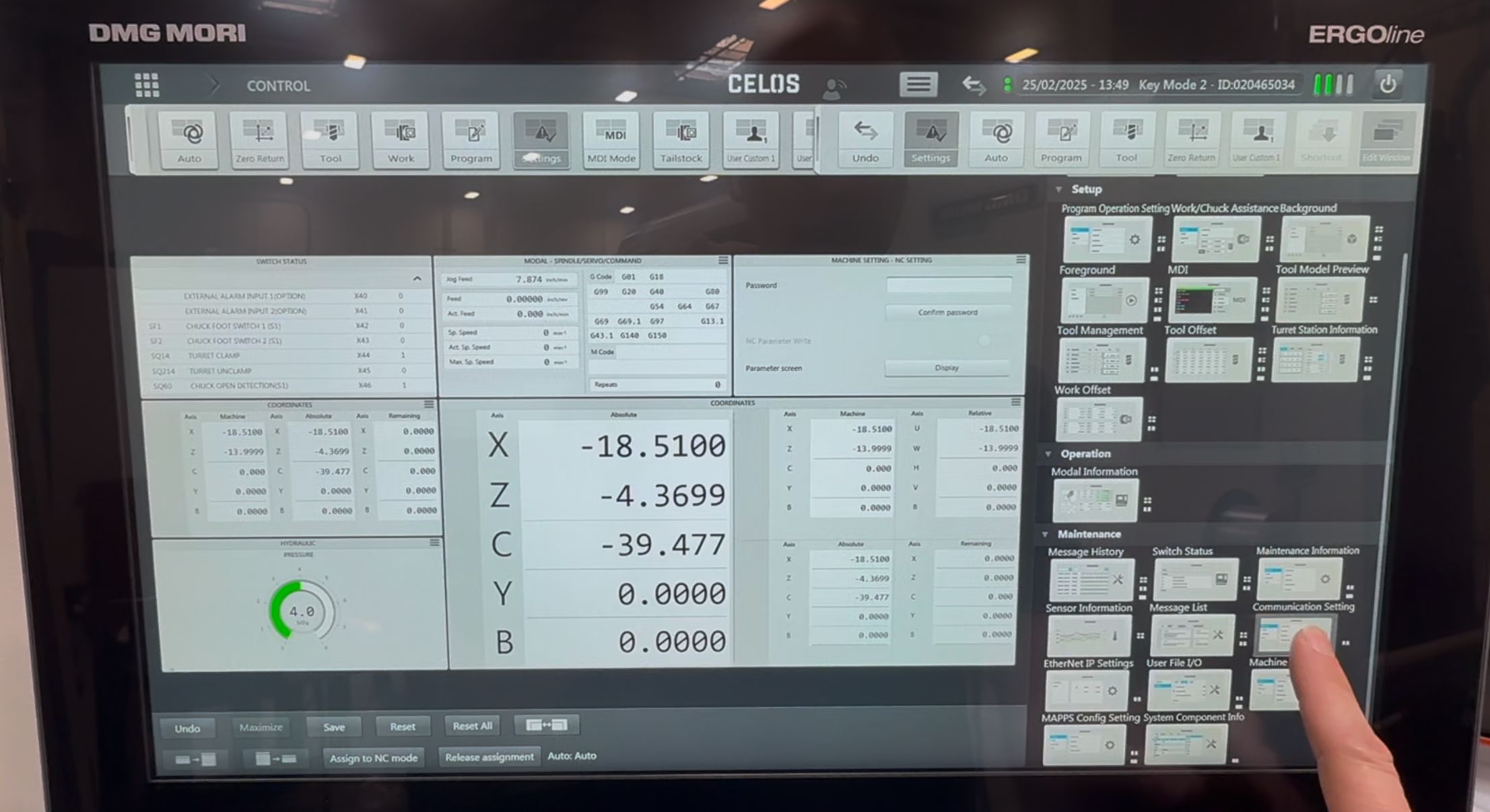

You’ll want to drag and drop the Communications Settings onto the main screen

Tap Edit Window again to view this screen and enable edits

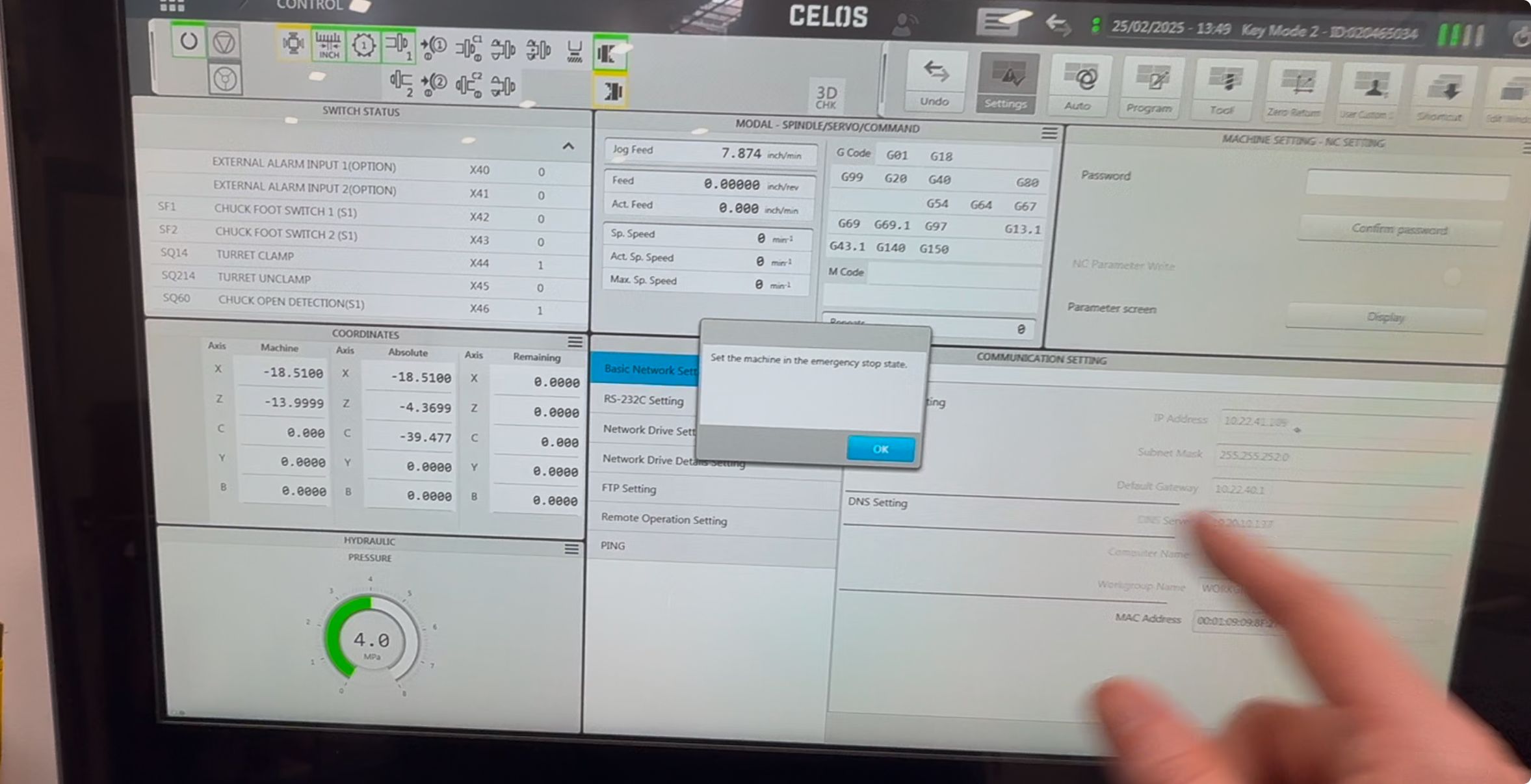

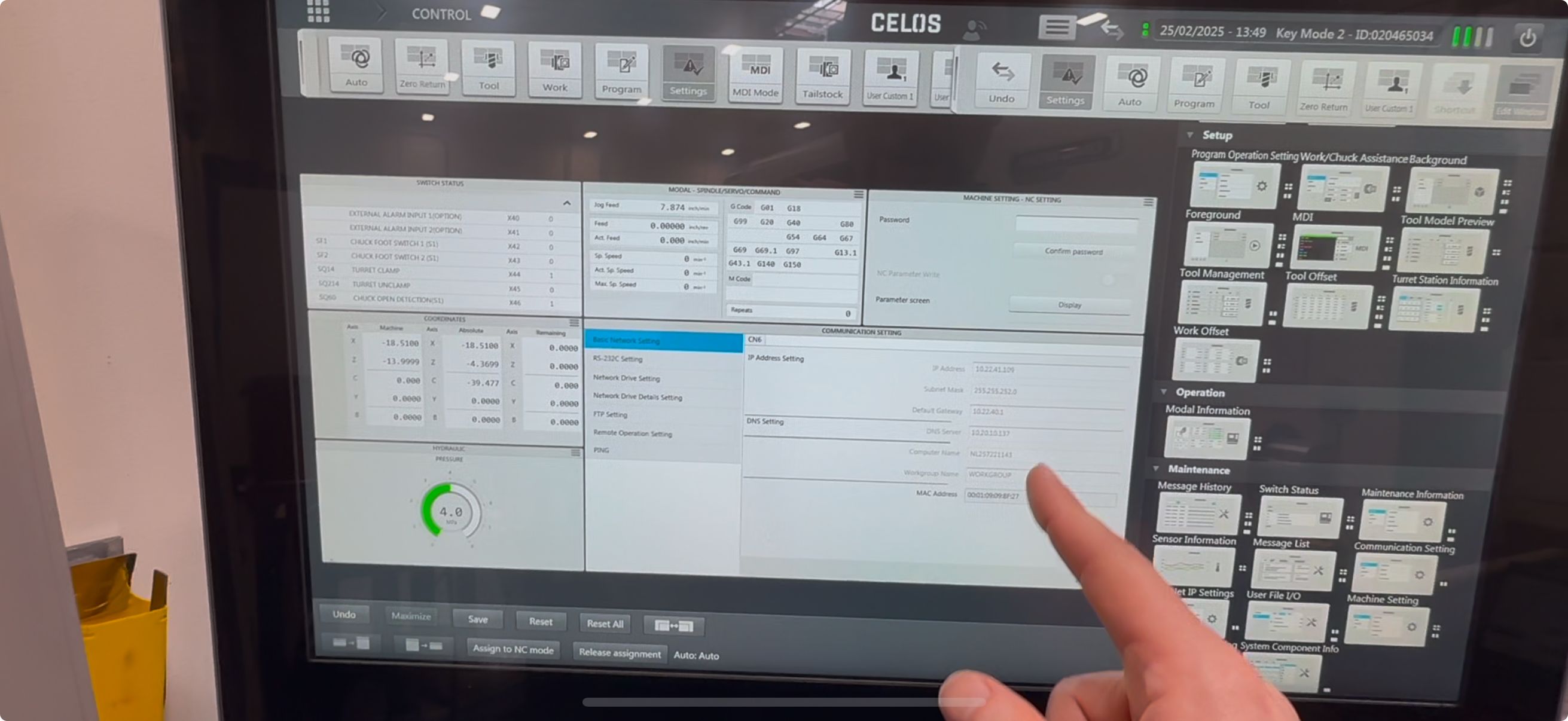

There is the IP Address. To change it you’ll need to put the machine into EStop
