Overview
There is an application on the Mazak control called Fusion Client. It was developed by Mazak to output UDP packet information to their CyberMonitor Tower system on Windows based controls.
We can use this application to output packets to an Edge device. In Fusion Client you must specify where the packets will be transmitted (Edge IP address). The data is always transmitted on port 51001.
Applicable Machines
- Fusion 640 (the could require a 16-bit PCMCIA Buffalo card and expansion slot if not present)
- Matrix
- Nexus
- Preview 3
- Smooth
Note
The Preview G, Smooth G and Smart control will require MTConnect. Please contact Mazak to purchase MTConnect.
Enabling Fusion Client on the CNC
- Access MS Windows Menu.
- Go to C:\CPCU\fmcnc
- Double Click Fusion Client.exe
- Nothing will appear to happen when you click the icon above, but it will now be in the Windows system tray, double click the icon there.
- Click change settings
- Add
-

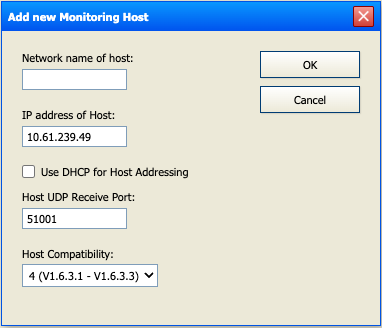

Enter a Network name (can be anything),
-
Enter the static IP address of the MachineMetrics Edge,
-
Enter 51001 for the UDP Receive Port.
-
In the Host Compatibility drop-down, select level 4.
-
- In the parameter tab on the main menu, deselect the close button check box.
- If you do not need the firewall on the CNC enabled, disable it, else you will want to add a port exception for port 51001.
