Edge Device and Network Diagrams

Randy Hoffman

December 02, 2022 17:31
Updated

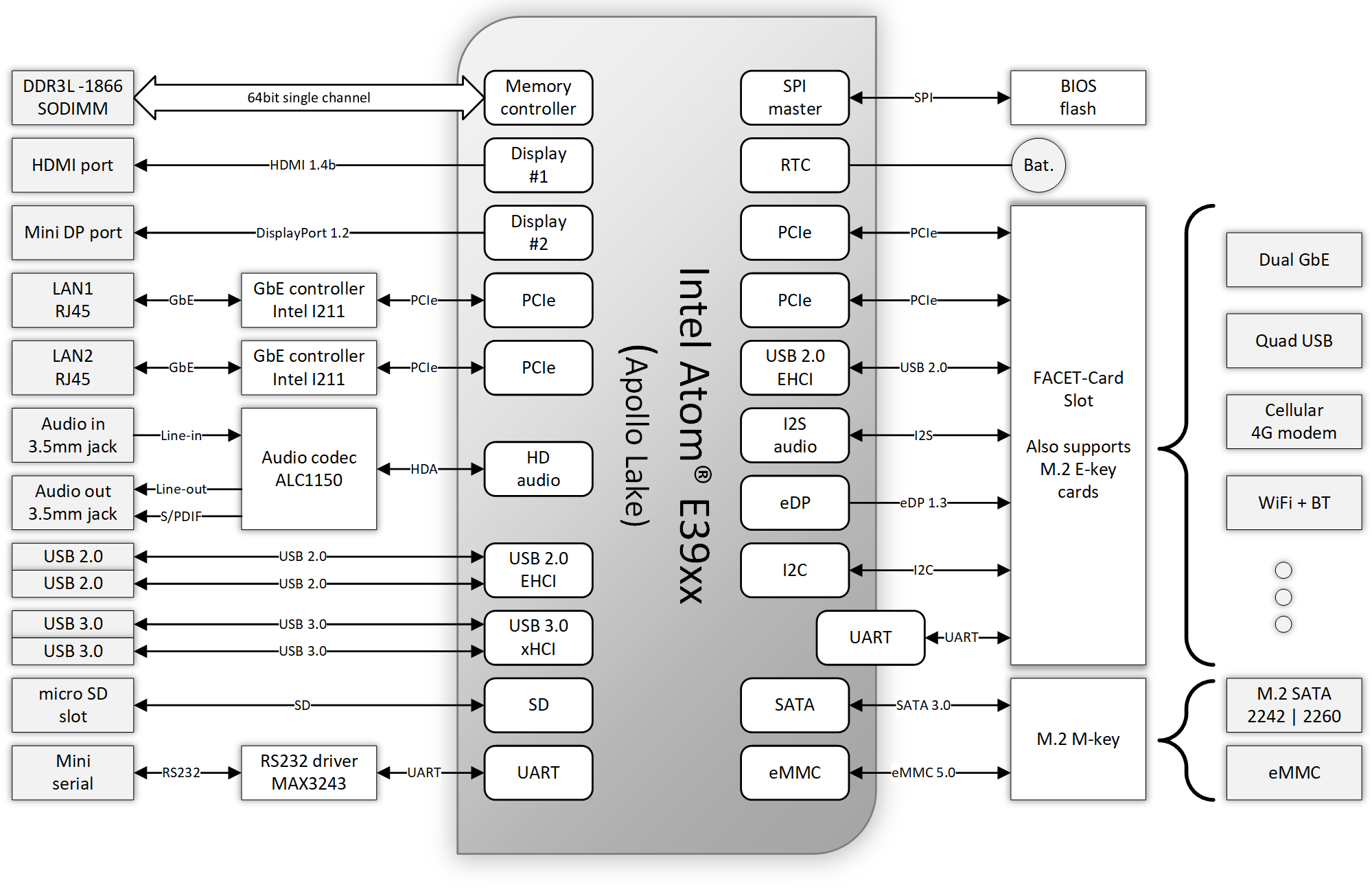

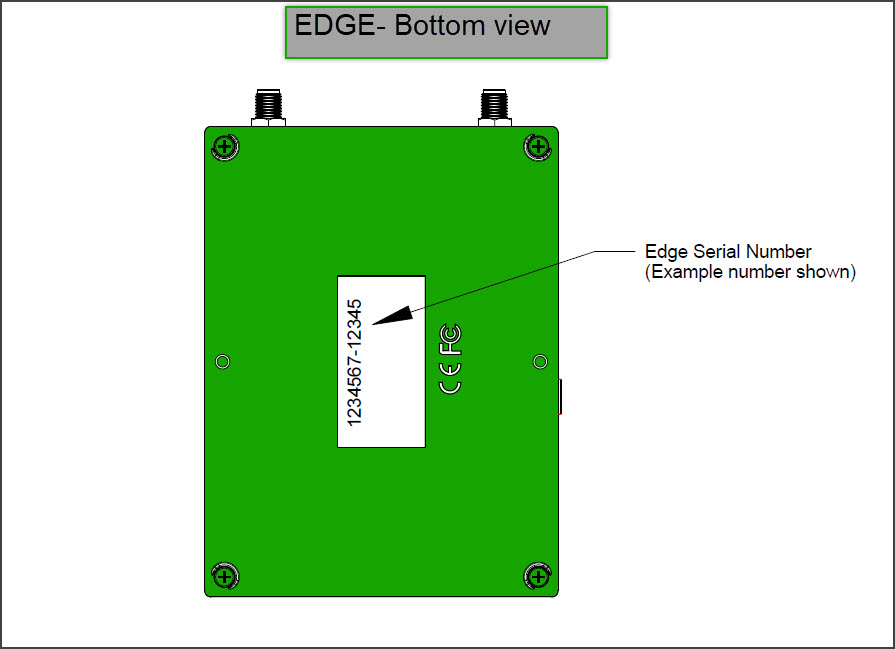

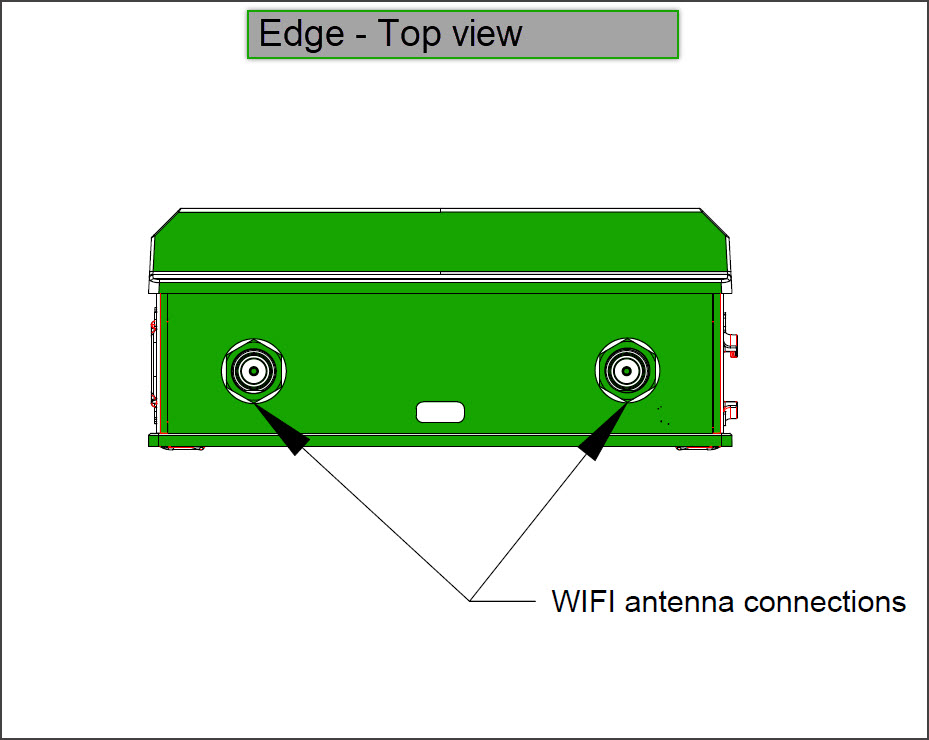

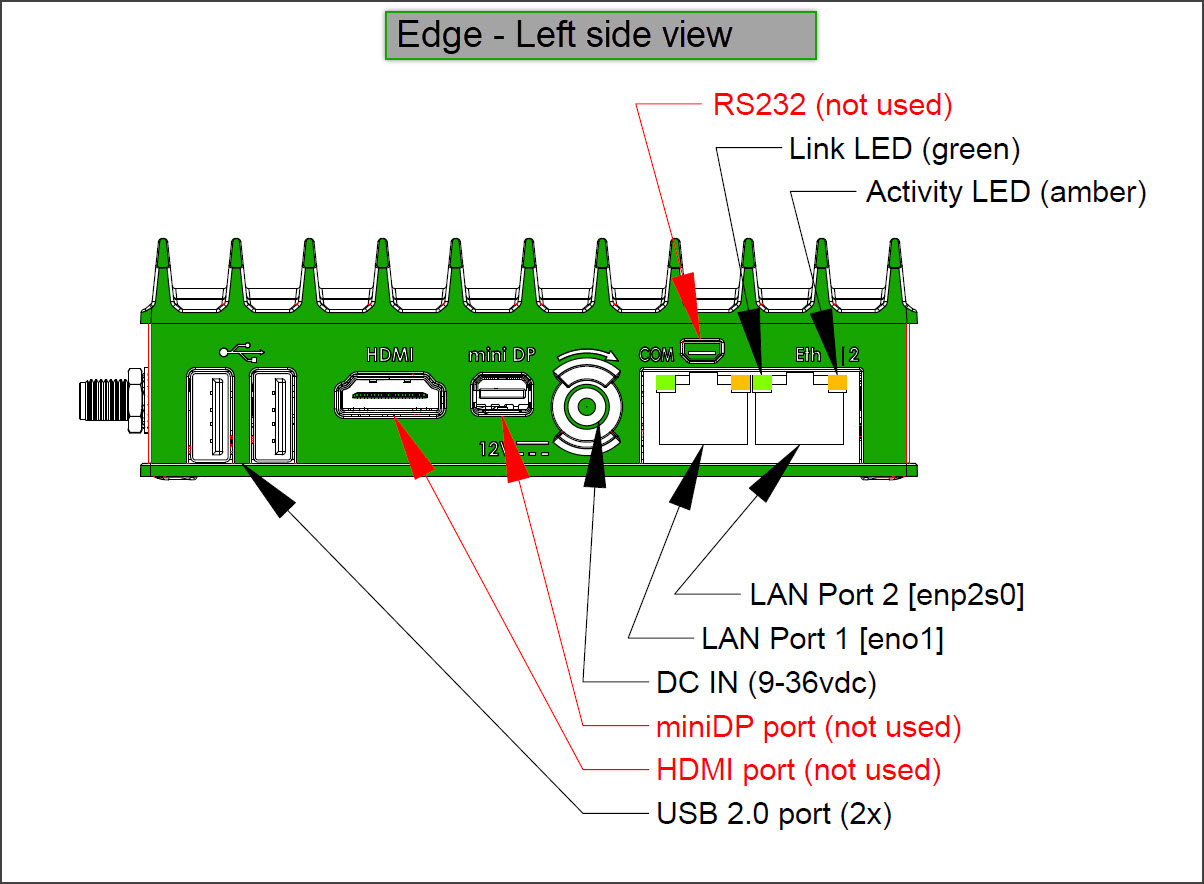

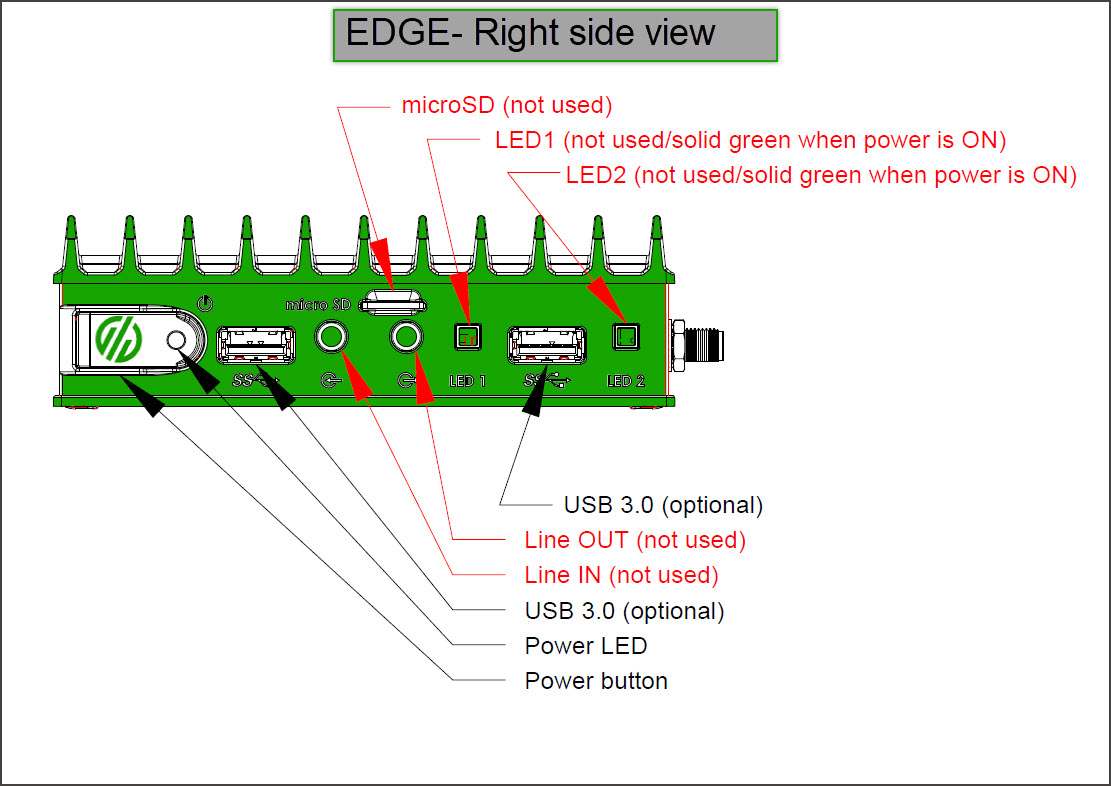

Below, you will find a networking diagram to help guide you when setting up your network. Further down, you will find diagrams of our Edge Device.

Please Note: If you would like to print the networking diagram, scroll to the bottom where you will find it as an attachment. You can then print from there.

Networking Diagram

It is important to note that the edge device is simply a PC that needs access to the internet and access to the machine network.

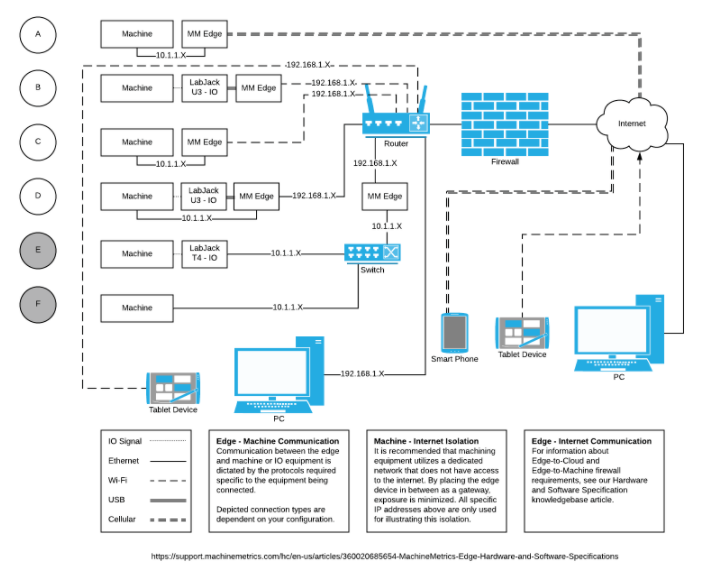

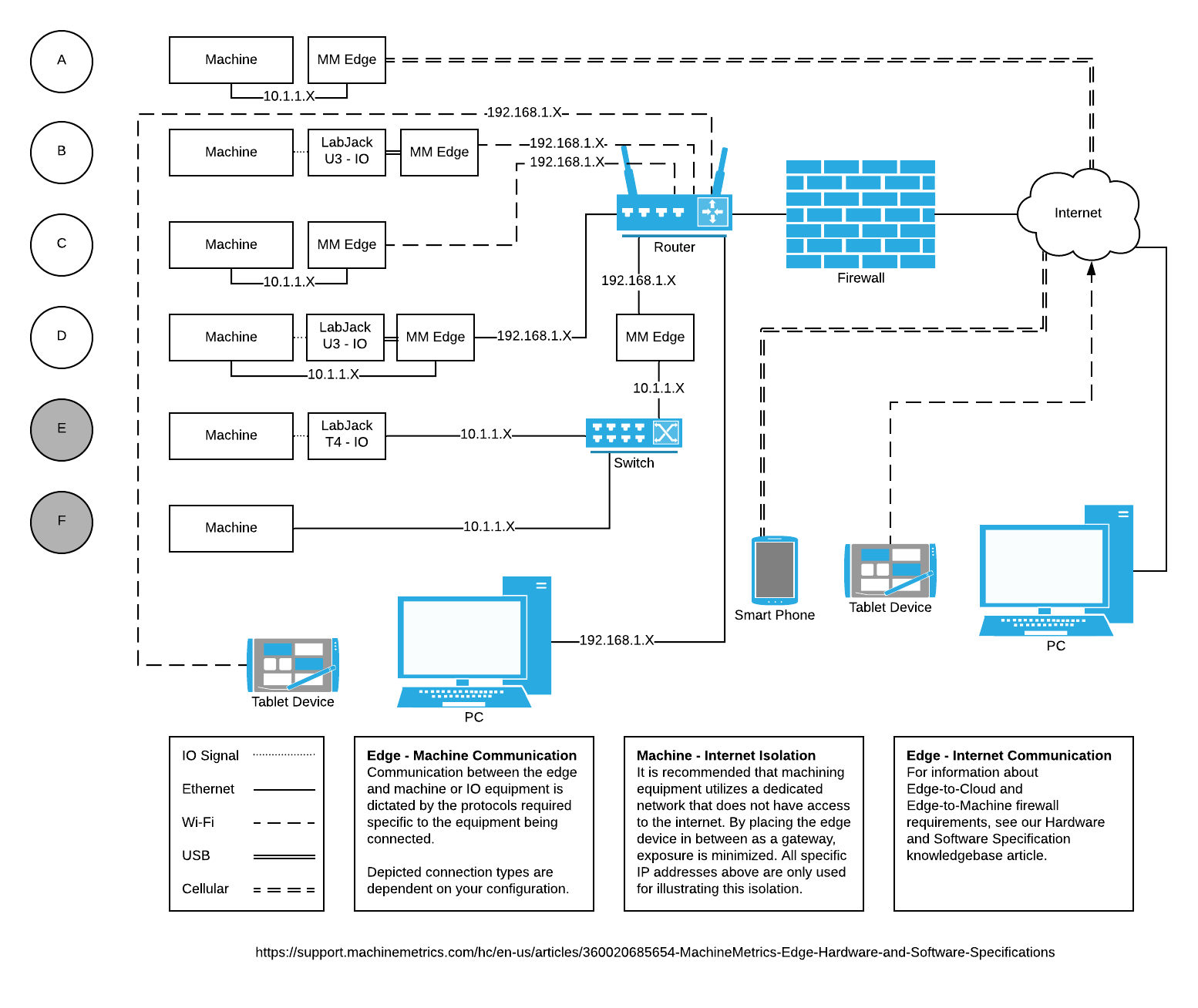

The diagram below highlights 6 examples (labeled A through F) which depict different ways MachineMetrics can be incorporated into your facility's network.
