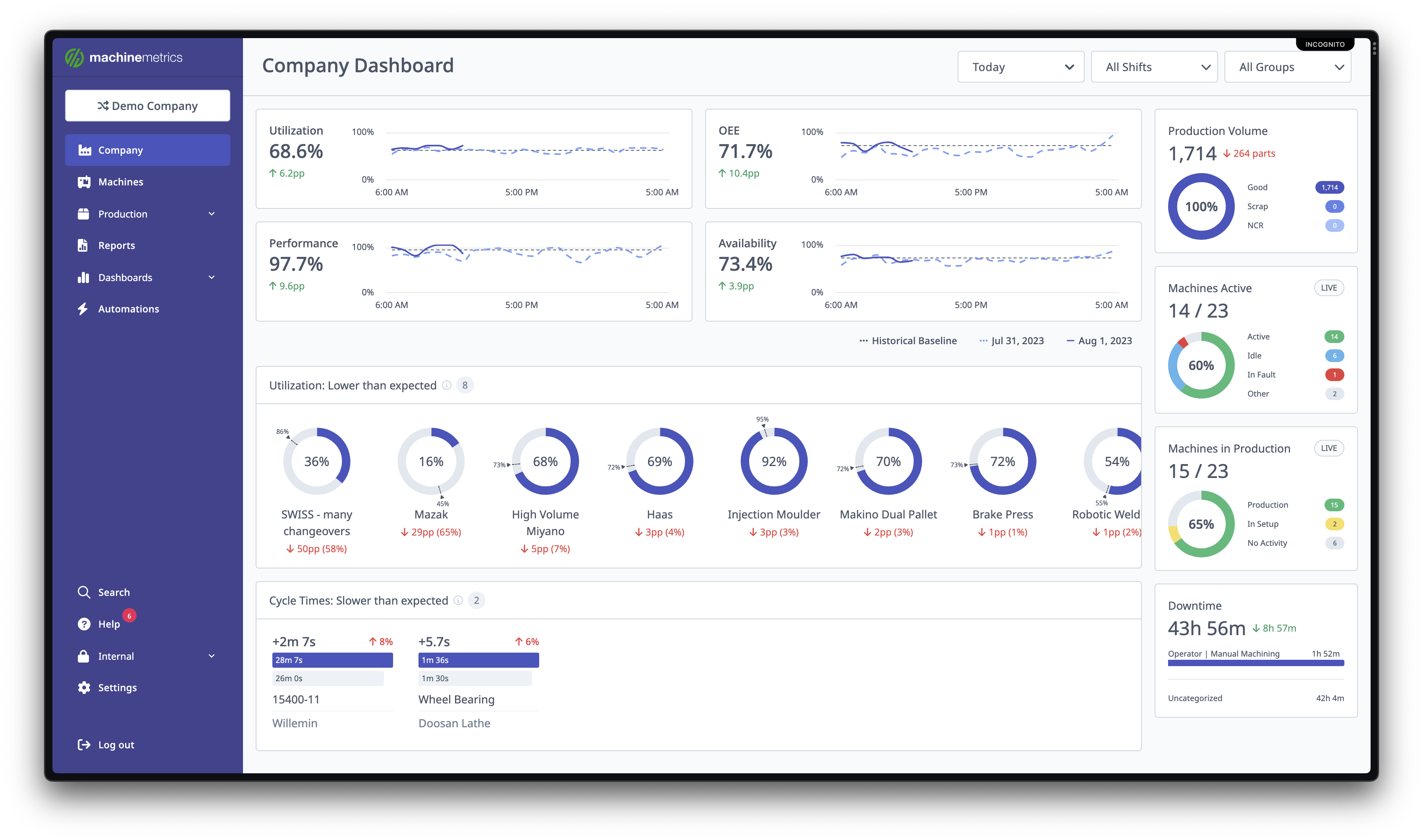

Company Dashboard

Introduction

The Company Dashboard provides valuable insights into your company's overall manufacturing performance. You can track key metrics such as Utilization, OEE, Availability, Performance, production volume, and more.

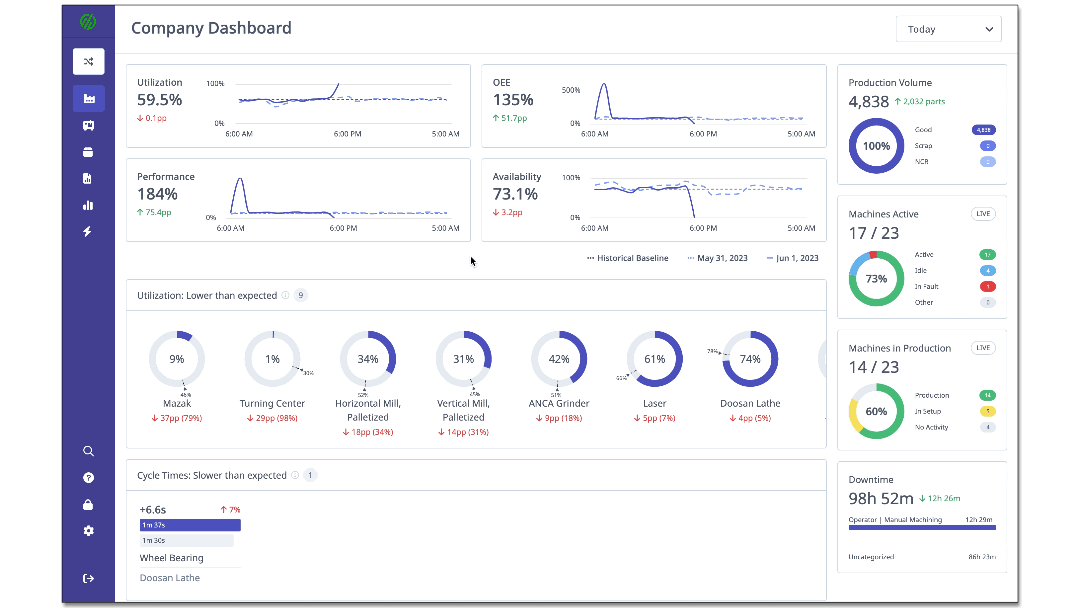

Exploring the MachineMetrics Company Dashboard - Watch Video

Table of Contents

• Dashboard Controls
• Dashboard Widgets
  • Main KPI Charts
  • Production Volume
  • Machines Active Wheel (Live)
  • Machines in Production Wheel (Live)
  • Top 5 Downtime Pareto
  • Utilization: Lower than expected
  • Cycle Times: Lower than expected
• What is a baseline?

Dashboard Controls

The Company Dashboard contains a date range selector, shift filter, and machine groups filter.

Filtering by shifts and machine groups will also filter the baseline to these criteria allowing for in depth analysis of company level metrics for departments and shifts..

Dashboard Widgets

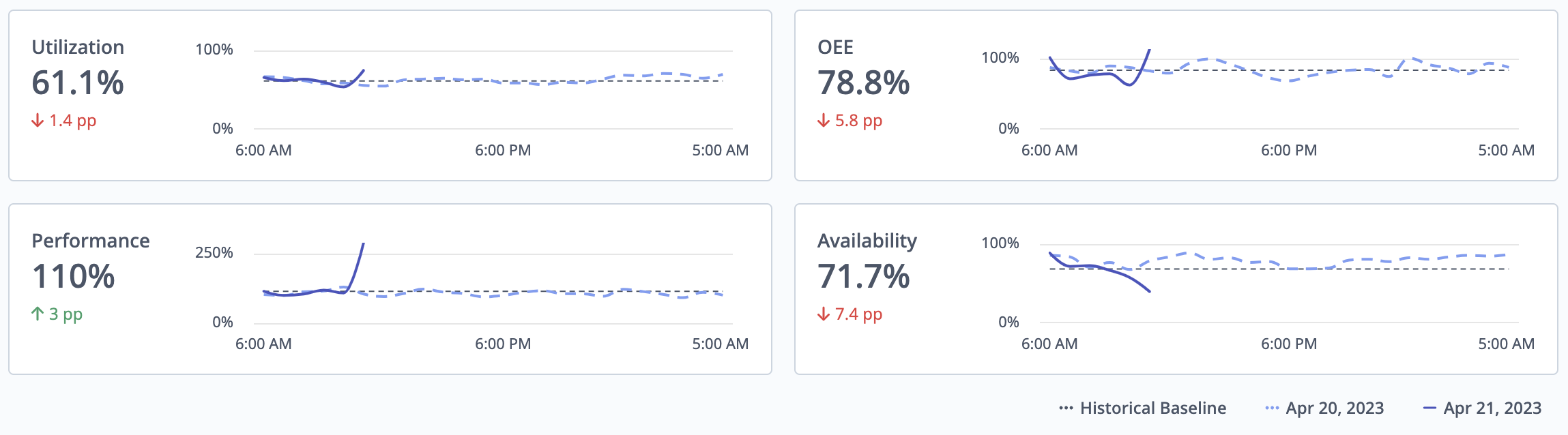

Main KPI Charts

Each chart displays the metric for the current time period (and variance from baseline), a comparison to the previous period (e.g. Week to Date compares to Previous Week), and a 6-month median baseline.

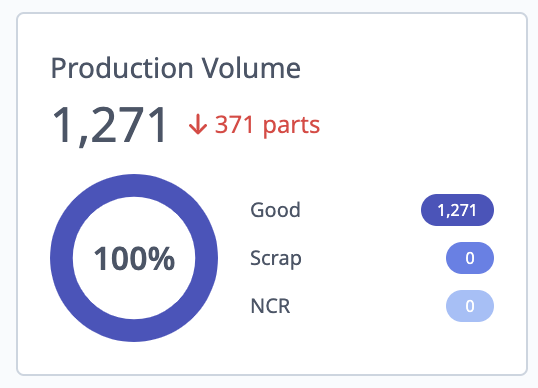

Production Volume

Displays Total parts (and variance from previous period), along with a breakdown by Good Parts, Scrap, or Non-Conforming.

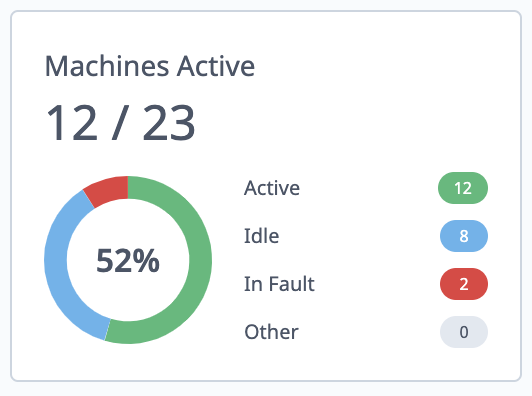

Machines Active Wheel (Live)

Displays a live breakdown of machines by execution status.

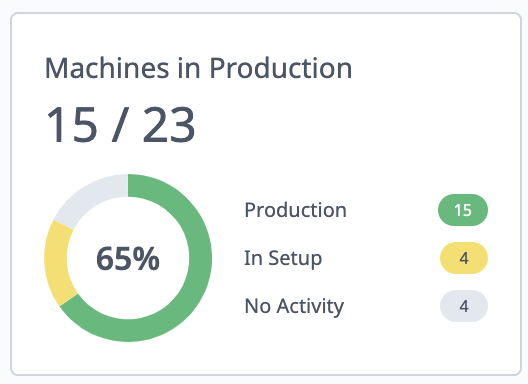

Machines in Production Wheel (Live)

Displays a live breakdown of machines by current Production status.

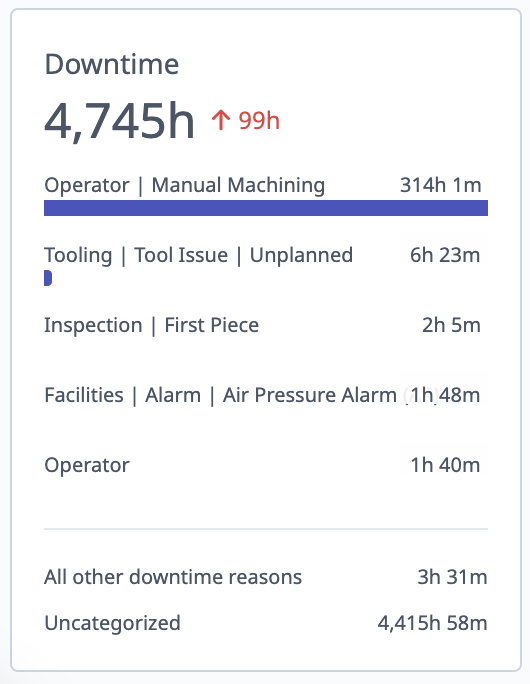

Top 5 Downtime Pareto

Displays a top 5 downtime pareto for the selected time range, the widget also shows a rollup of all other downtime categories, and uncategorized downtime. Click the view report link at the top of the widget to open the Downtime Report.

Note: This Downtime widget displays Total Downtime which includes planned/unplanned downtime and micro/long events.

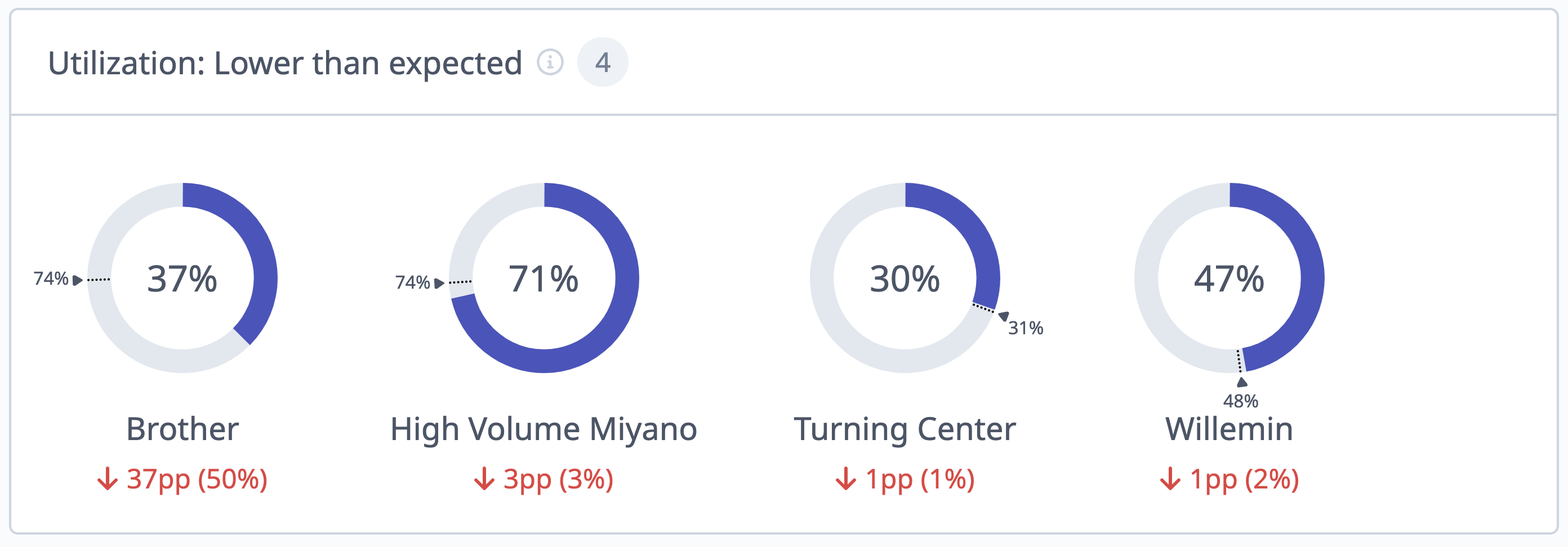

Utilization: Lower than expected

Any machine with a median utilization value (determined by the currently selected date range) that is lower than the historical baseline will be displayed here (sorted by the highest variance to the lowest variance).

Note: Machines with no first active time will be excluded from this widget.)

Clicking a machine in the "Utilization: Lower than expected" card will open a snapshot of the selected machine's overview page filtered to the currently selected date range. Clicking "Go to machine" will bring you directly to that machine's overview page (filtered to the date range you have selected in the Company Dashboard). Easily access the machine's Timeline and drill down for more detail.

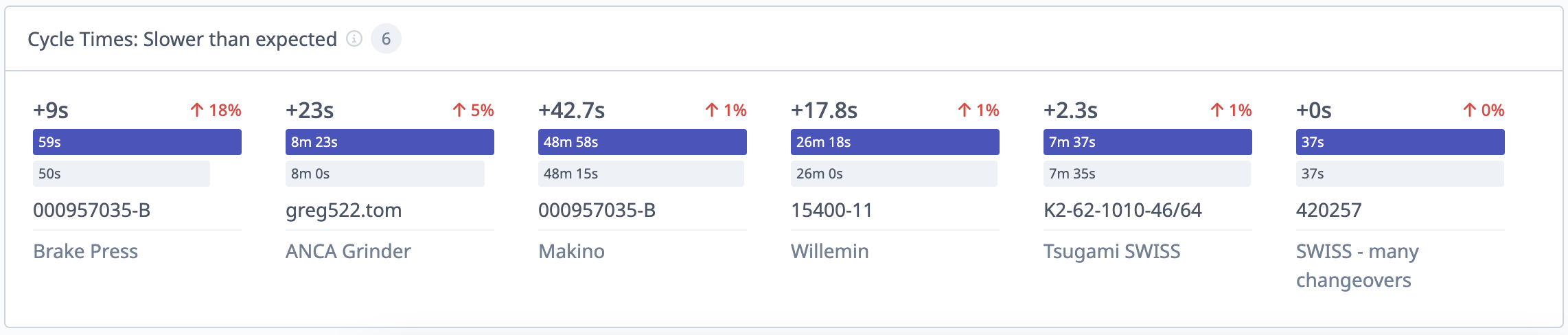

Cycle Times: Slower than expected

Any operation on a machine within the selected time period (currently restricted to less than a week) with a median cycle time that is lower than the expected cycle time will be displayed here (sorted by the highest variance to the lowest variance).

What is a baseline?

Understanding Historical Baselines

Comparison Periods and Trends

Compares the data in the selected date range against the data from the previous period. When selecting “Today” we determine the trend/change based on the data from the previous 24 hour shop day. When selecting “Last 7 Days” we use the preceding 7 days as the comparison (example: If the date is April 25th, and Last 7 days are selected in the date picker, Apr 19-Apr 25, will be compared against Apr 12-Apr 18, 2023.)

Shown on:

• Utilization, OEE, Performance, and Availability charts.
• Production Volume
• Downtime
